UHF Radio with Rubber Antenna

This extremely robust fibreglass radome antenna is constructed with heavy-duty stainless steel fittings, ideally suited to 4WD bullbar mounting.

Features

• 80 Narrowband Channels
• Ultra compact micro size

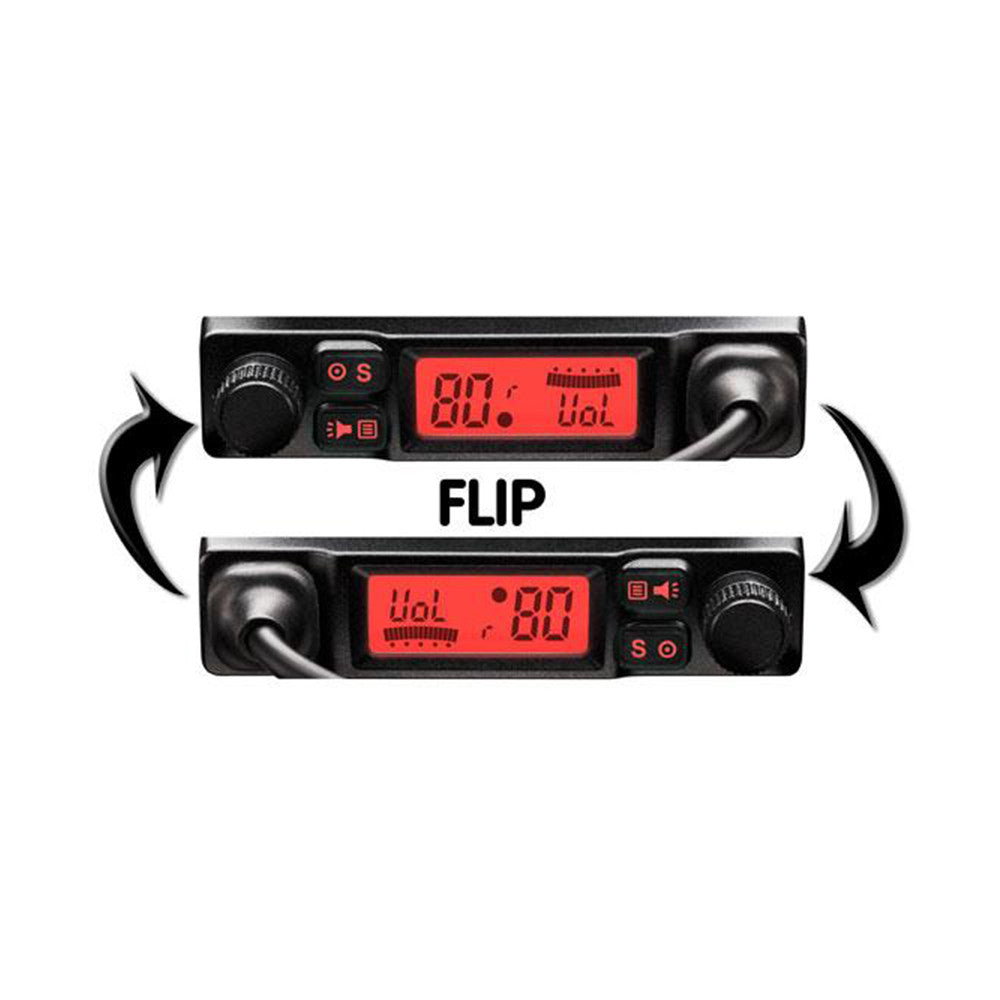

• Flip LCD function
• Automatic level control (ALC) for consistent audio levels

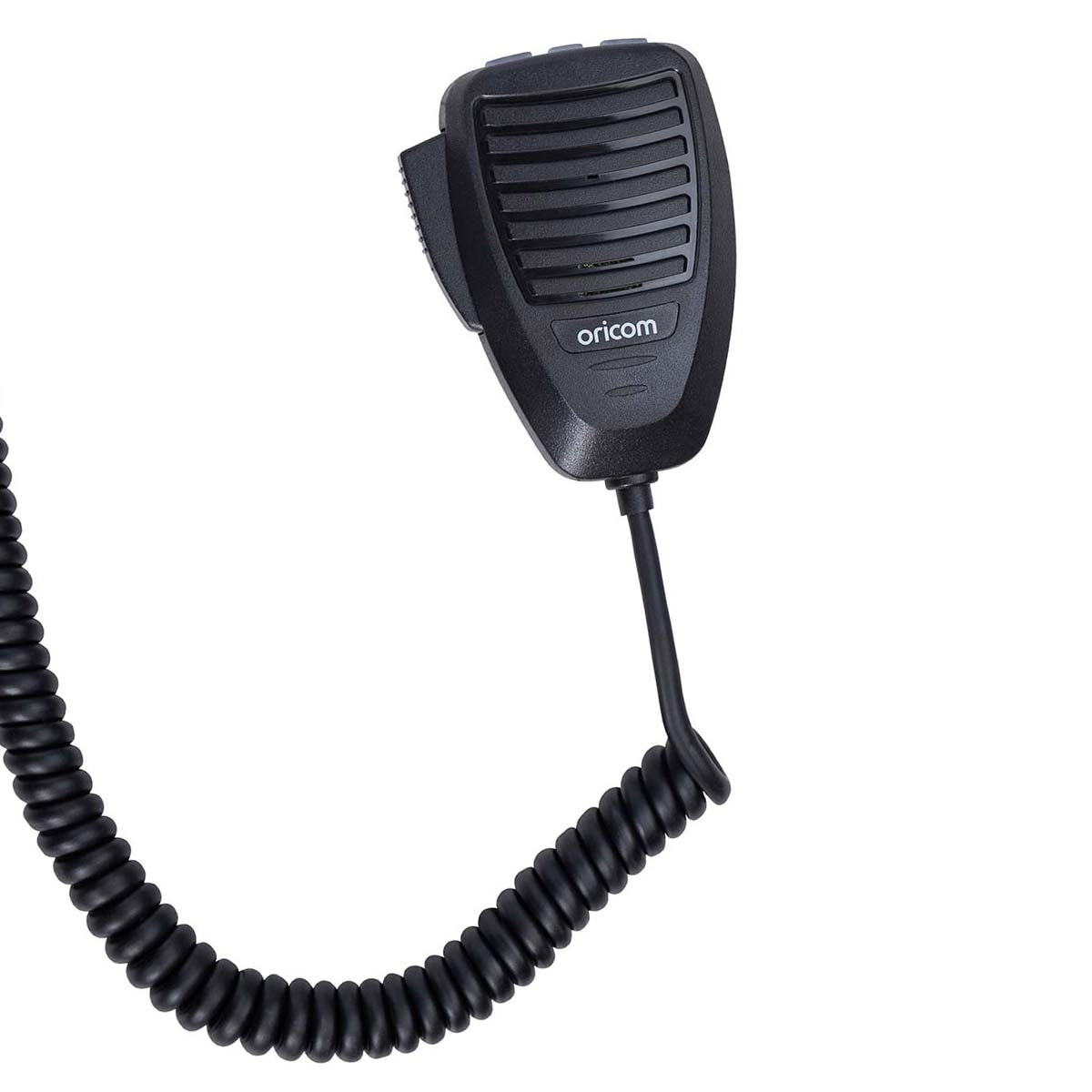

• Heavy-duty microphone with volume control
• 38 CTCSS and 104 DCS Codes
• 7 Colour backlit display
• Duplex (range extender)
• Open/Group Scan
• Priority channel
• Rotary channel select
• Digital squelch control
• Busy channel lockout
• Die cast metal chassis with integrated heat sink
• Optional external speaker (3.5mm jack)
• Designed and engineered in Korea


Specifications

• Compliance AS/NZS 4365:2011
• Dimensions of transceiver: 22.5(h) x 100 (w) x 84 (d) mm
• Frequency Range 476.425 - 477.4125 MHz
• Number of TX/RX Channels 80 UHF CB (75 Voice channels)
• Channel Spacing TX/RX 12.5KHz
• Operating modes Simplex, Repeater TX offset (+750kHz)
• Scanning Speed 130 msec per channel
• Automatic Level control (ALC) For consistent audio levels
• Antenna Impedance 50 Ohms
• Operating Volts nominal 13.8 VDC
• Operating Volts Range 10 to 15 VDC
• Over Voltage Protection voltage regulator
• Over Current Protection 2 Amp fuse
• Reverse Polarity Protection Series diode
• Frequency Stability +/- 2.5ppm
• Transmitter:
• RF Output Power 5 watts max.
• Modulation F3E (FM)
• Maximum Deviation 2.5KHz
• Spurious Emissions < -70 dBc
• TX Audio pre-emphasis + 6dB/octave from 300Hz to 3kHz
• Current Consumption during TX 1.5 Amps with 50 Ohm antenna termination
• Receiver:
• Circuit Type Dual conversion superheterodyne
• IF Frequencies 1st IF = 21.4MHz , 2nd IF = 450kHz
• Current Consumption during RX 200mA
• Sensitivity < -121 at 12dB SINAD
• Selectivity +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB
• Intermodulation Immunity > 70dB
• Spurious Immunity > 70dB
• Audio Output Power 3 Watts Maximum
• RX Audio de-emphasis -6dB/octave 300Hz to 3kHz
• Audio frequency response 300Hz to 3kHz

Package includes:

• 1 x UHF Radio base

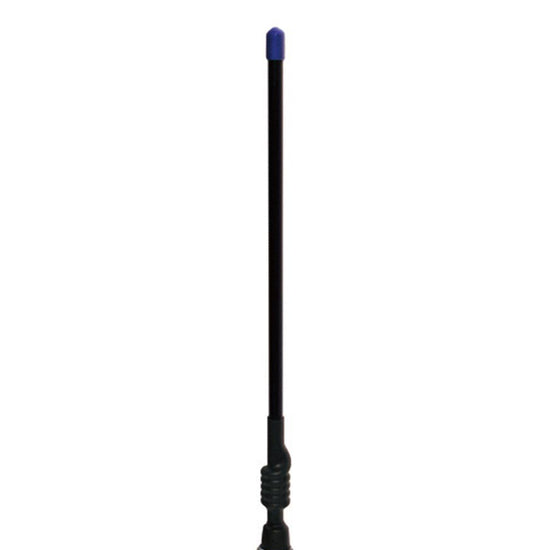

• Ducky Rubber Antenna
• 4m Cable
• PL259 Connector
