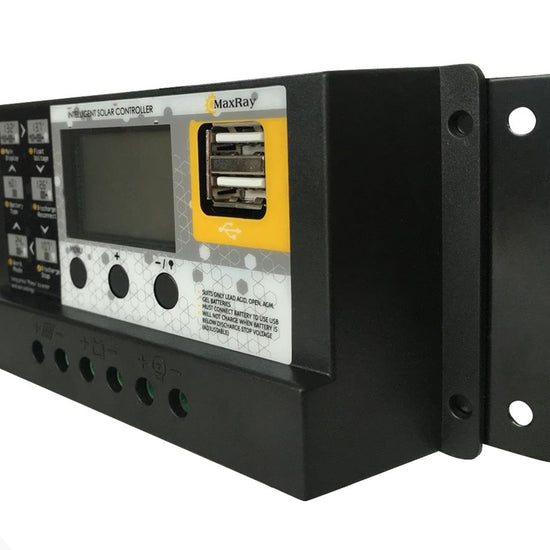

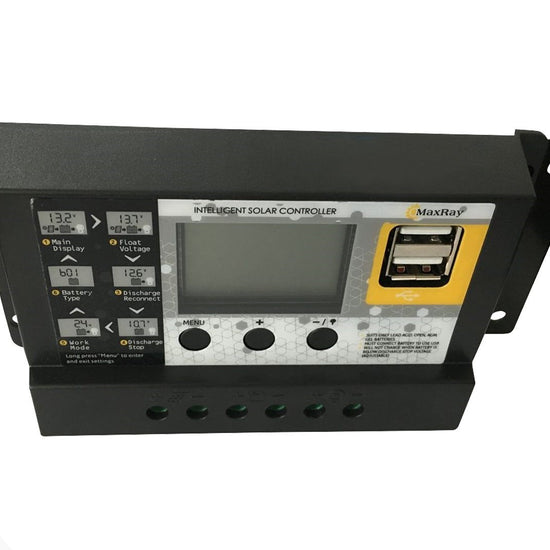

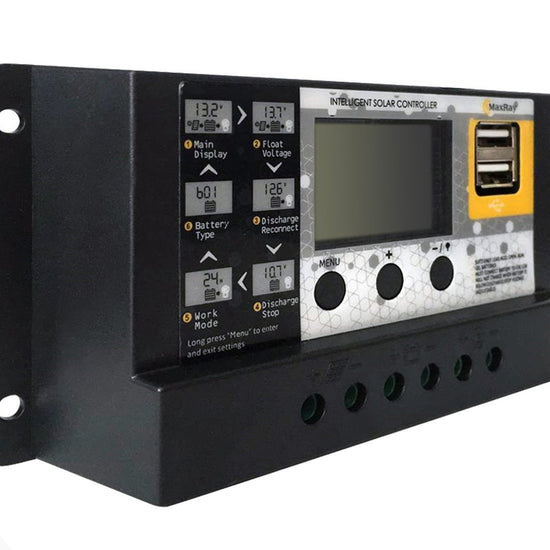

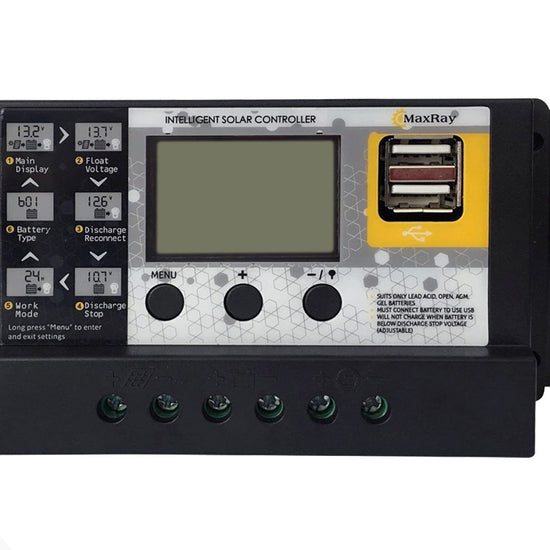

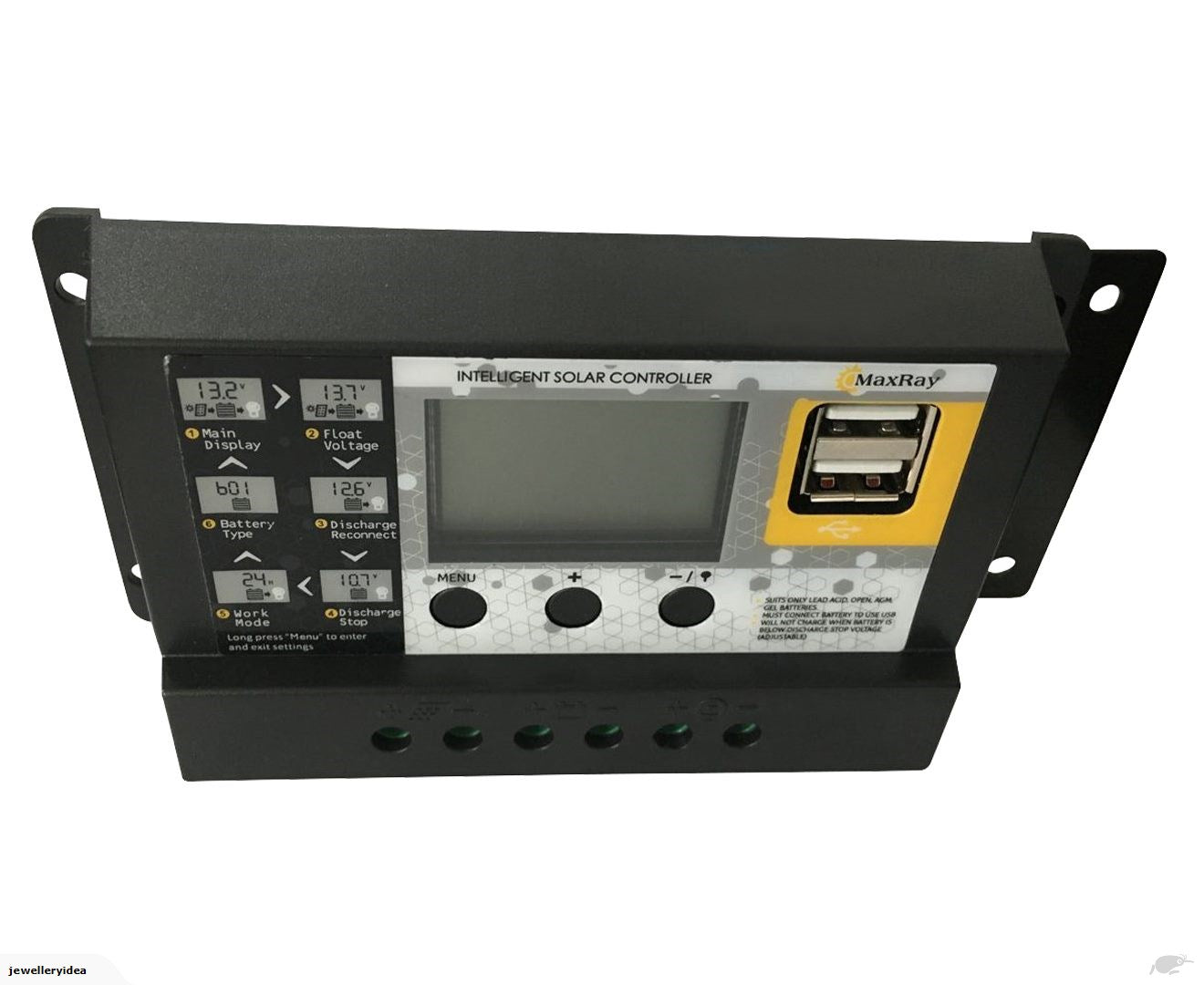

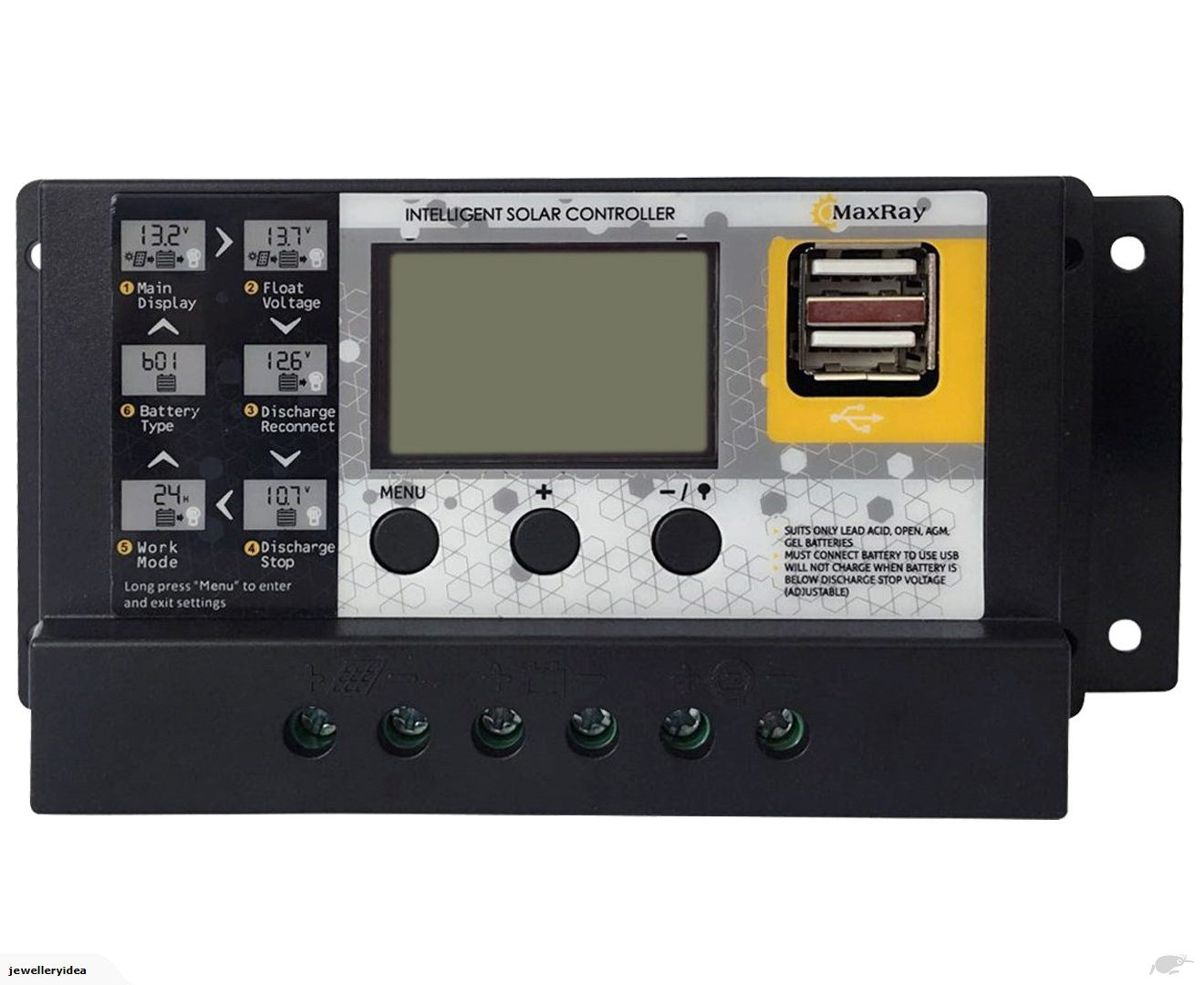

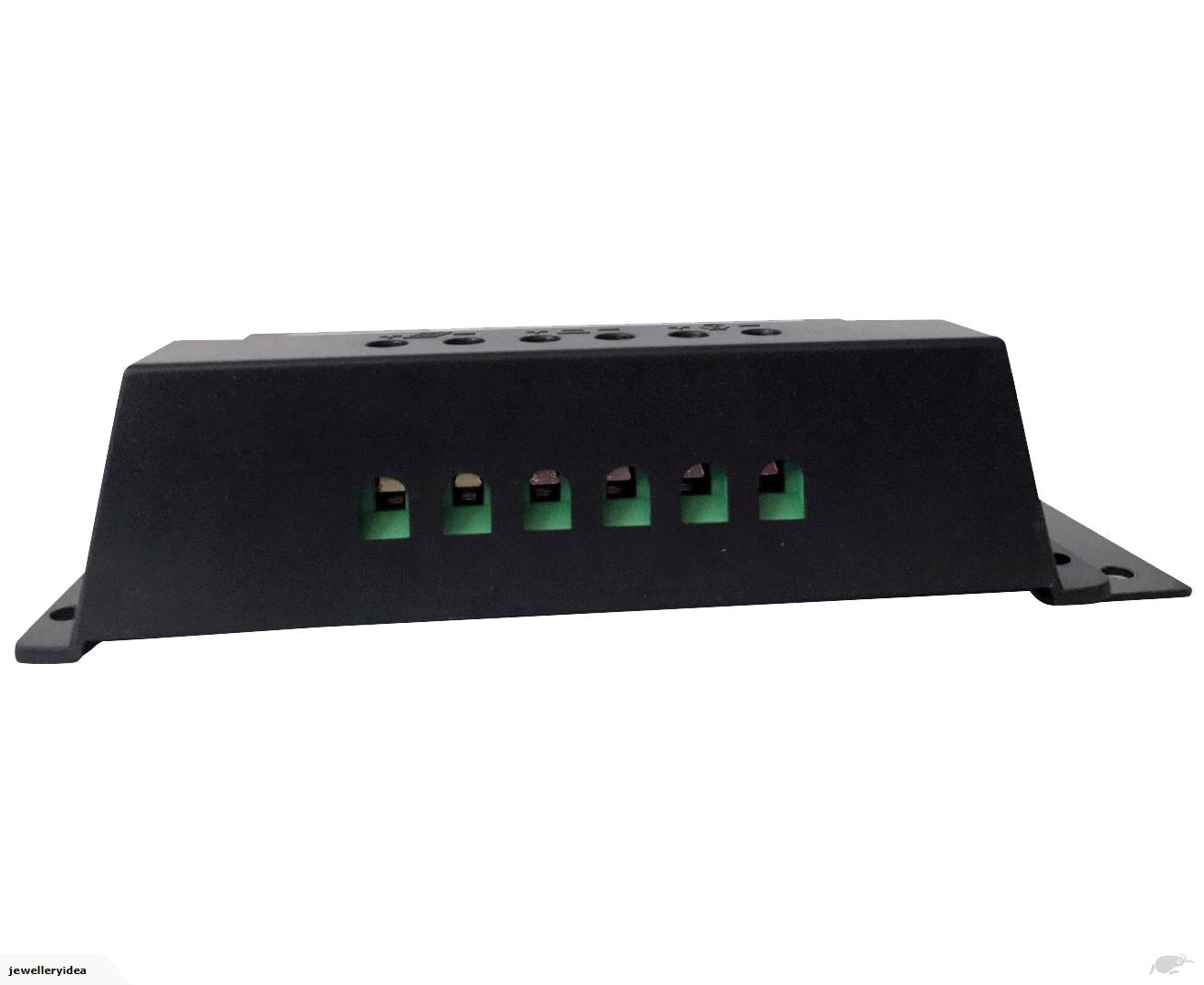

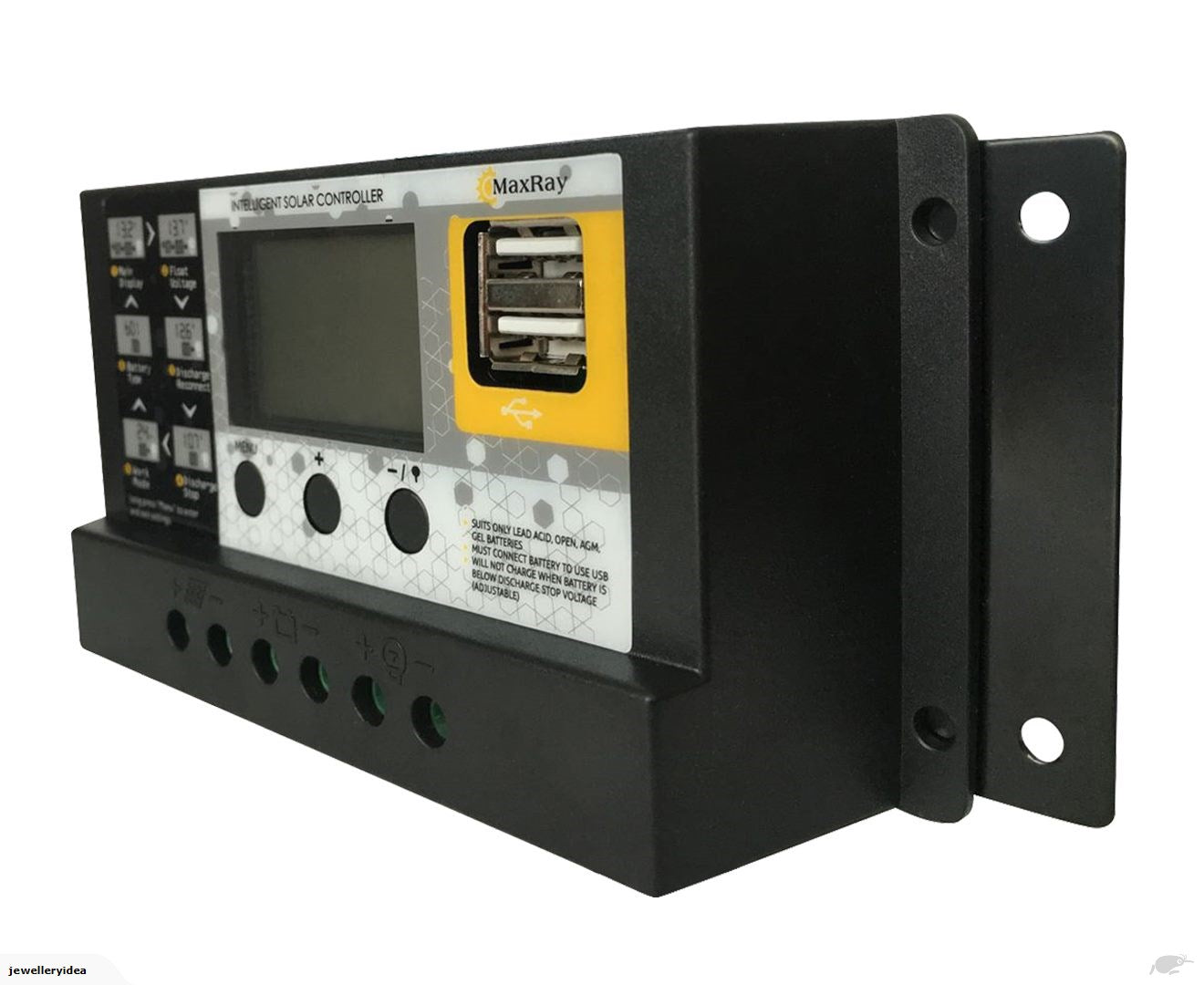

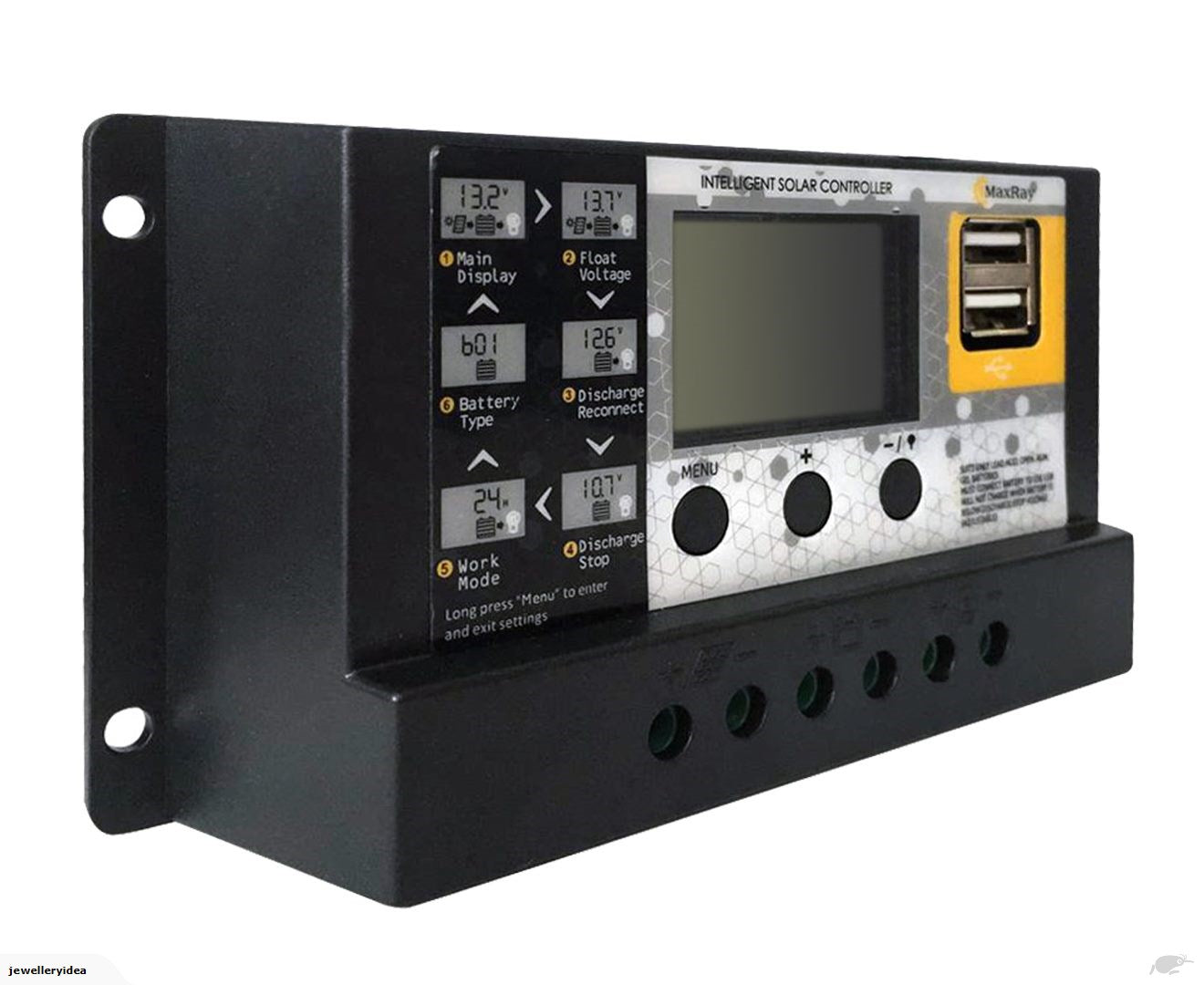

This solar regulator (or controller) comes with LCD display and dual USB ports to charge your 12V loads. It comes with reverse current protection and low heat production to protect your dual battery system.
Built-in industrial micro-controller.
4-stage PWM charge management.
Built-in short-circuit protection, open-circuit protection and over-load protection
Dual MOSFET reverse current protection
Only for off-grid PV Solar System
Suitable for lead-acid batteries: OPEN, AGM, GEL
Rated Voltage: 12V 24V Auto
Current: 10A, 20A or 30A
For 10A 12V Pv System: Suitable for 130W Solar Panel, 12V Lead-acid Battery
For 10A 24V Pv System: Suitatable for 260W Solar Panel, 24V Lead-acid Battery
Make sure your battery has enough voltage for the controller to recognize the battery type before the first installation.
The battery cable should be as short as possible to minimize loss.
The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL
It is not suited for nickel-metal hydride, lithium ions or other batteries.
The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

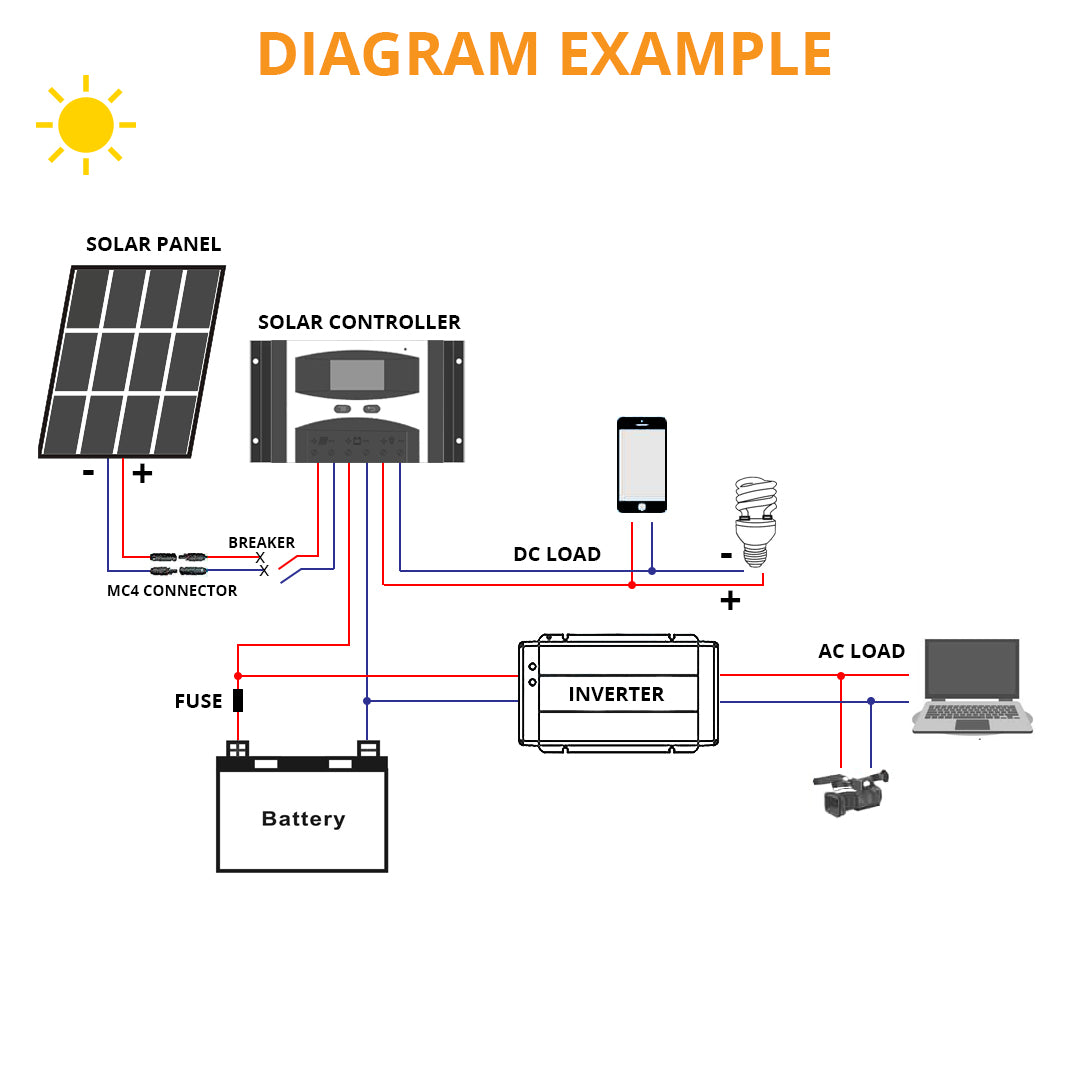

Connect the battery to the solar charge regulator - plus and minus. It will show (1) if it detects a 12V battery or (2) if it detects a 24V battery.
Connect the photovoltaic module to the regulator - plus and minus.
Connect the load to the charge regulator - plus and minus.
1x Solar panels Battery Charge Controller
1 x User Manual
