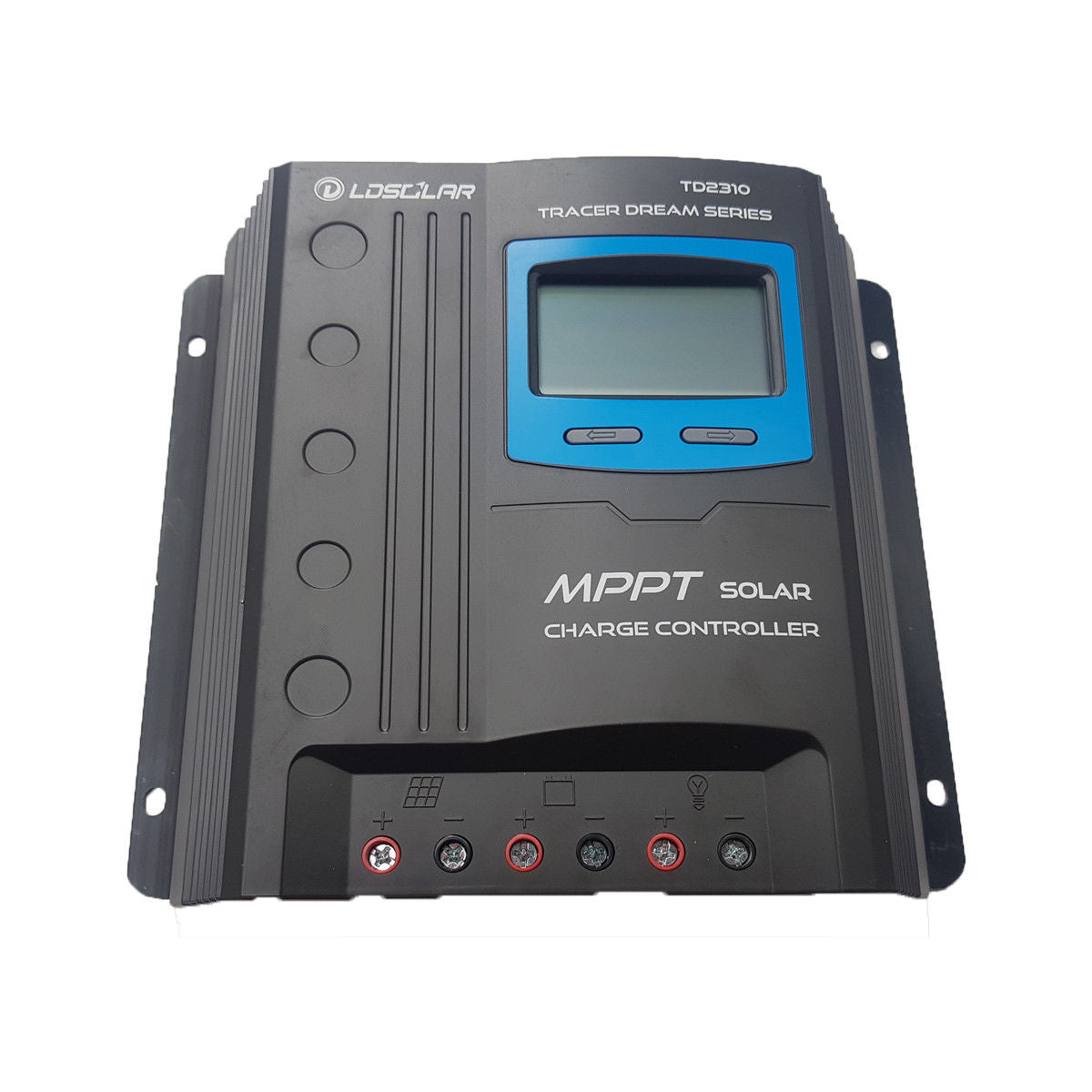

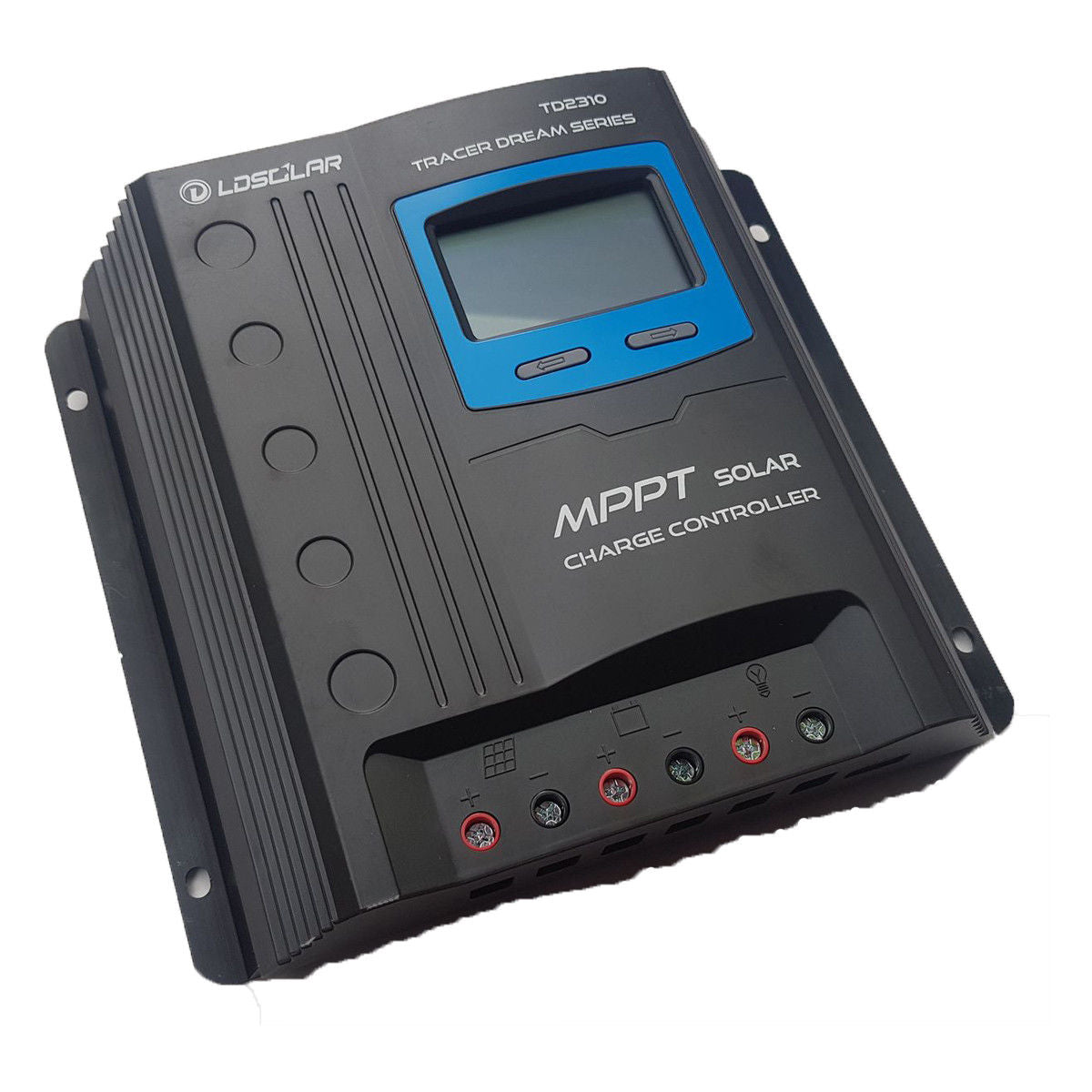

30A MPPT Solar Controller

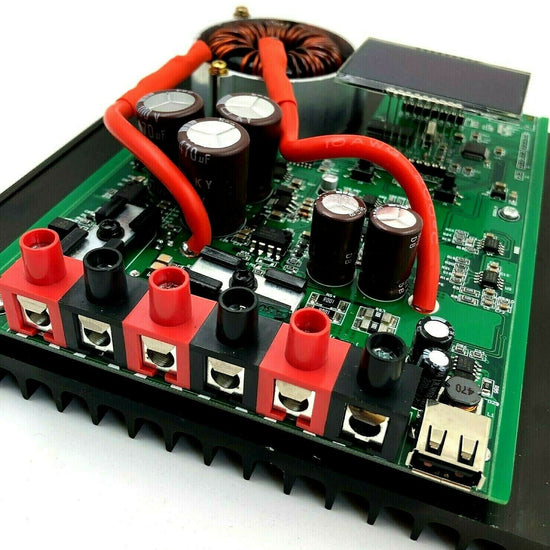

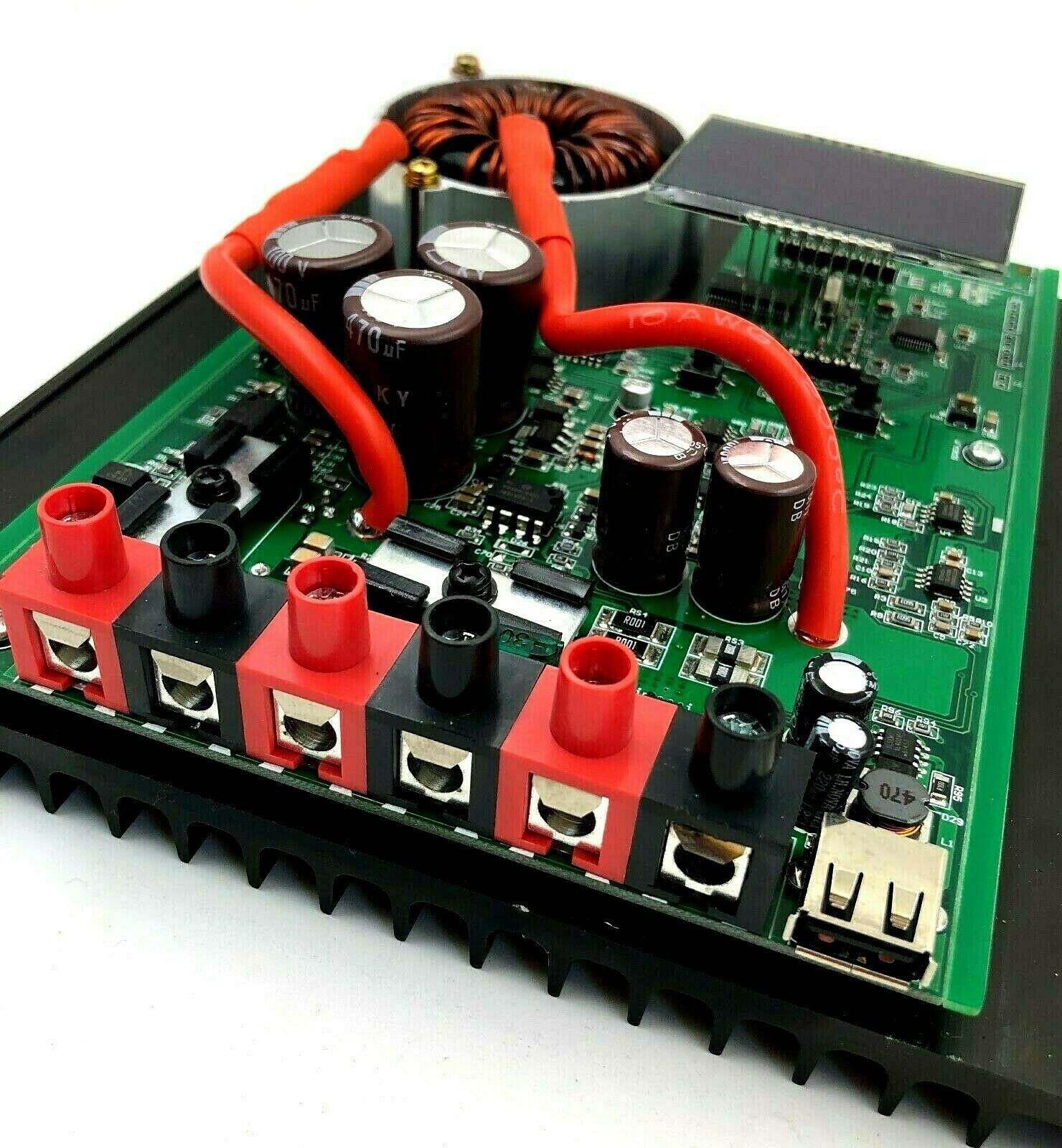

This heavy-duty MPPT solar regulator is also known as a solar charge controller. The unit has a large heat sink to dissipate heat and large wire terminal connections to accept large gauge cables. It comes with an LCD built-in display.

Solar regulators are used to connecting your solar panels to batteries so the battery is charged at the correct power rates, protecting your solar panels, battery and loads.

Features:

• 30 Amp Maximum Current
• True MPPT
• 12/24VDC Auto Select
• USB Charging Socket
• Adjustable Load Timer Output
• Large Heat Sink
• Charge Status Indicator
• Under and Over Voltage Indicators
• Load on/off Selectable
• LCD Display

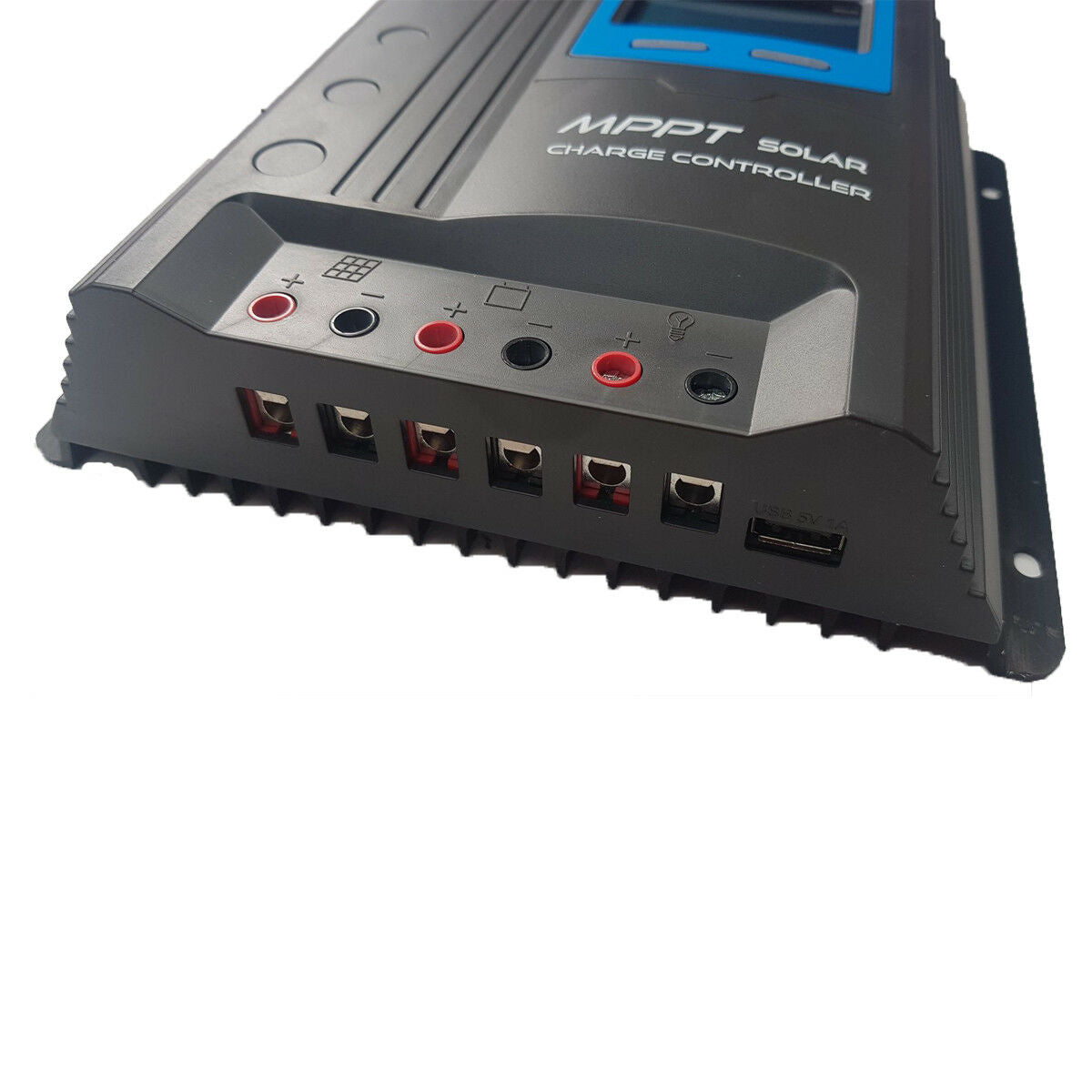

• Large Terminals for large cables
• Reverse Polarity Protection
• 2 Hour Boost Charge when under voltage
• Over Current Protection
• Reverse Polarity Protection
• 2-Years Manufacturing Warranty

Specifications:

• Dimensions: 200x183x54mm
• Mounting holes: 190x130mm
• Weight: 1.2Kg
• Terminal Size: 16mm2
• Enclosure Rating: IP32
• Temperature Range: -20°C~+55°C
• Voltage:12/24 Auto Selection
• Voltage Range: 11-30V
• Input Power Range: 390W (12V) 780W (24V)
• Standby Current Drain: <15mA
• Maximum Current: 30AMP
• Maximum Input Voltage: 100V
• Efficiency: 99%
• Overload Protection: 30sec restart
• USB Output: 5V (1 Amp)

Package Includes:

• 1 x Solar Regulator
• 1 x Instructions manual

Safety Instructions:

• Make sure your battery has enough voltage for the controller to recognize the battery type before the first installation.
• The battery cable should be as short as possible to minimize loss.
• The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL
• It is not suited for nickel-metal hydride, lithium ions or other batteries.
• The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

System Connection:

1. Connect the battery to the solar charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the load to the charge regulator - plus and minus.

Shipping: FREE Australia wide.
