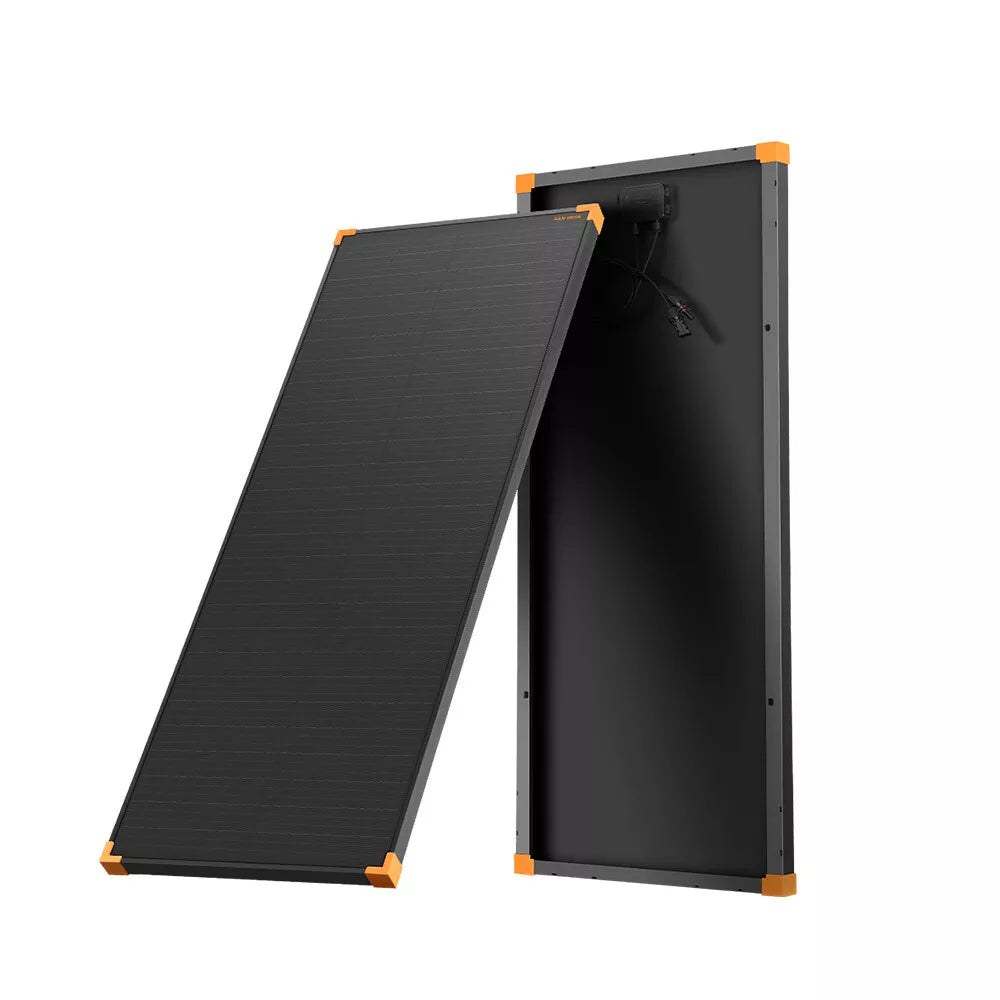

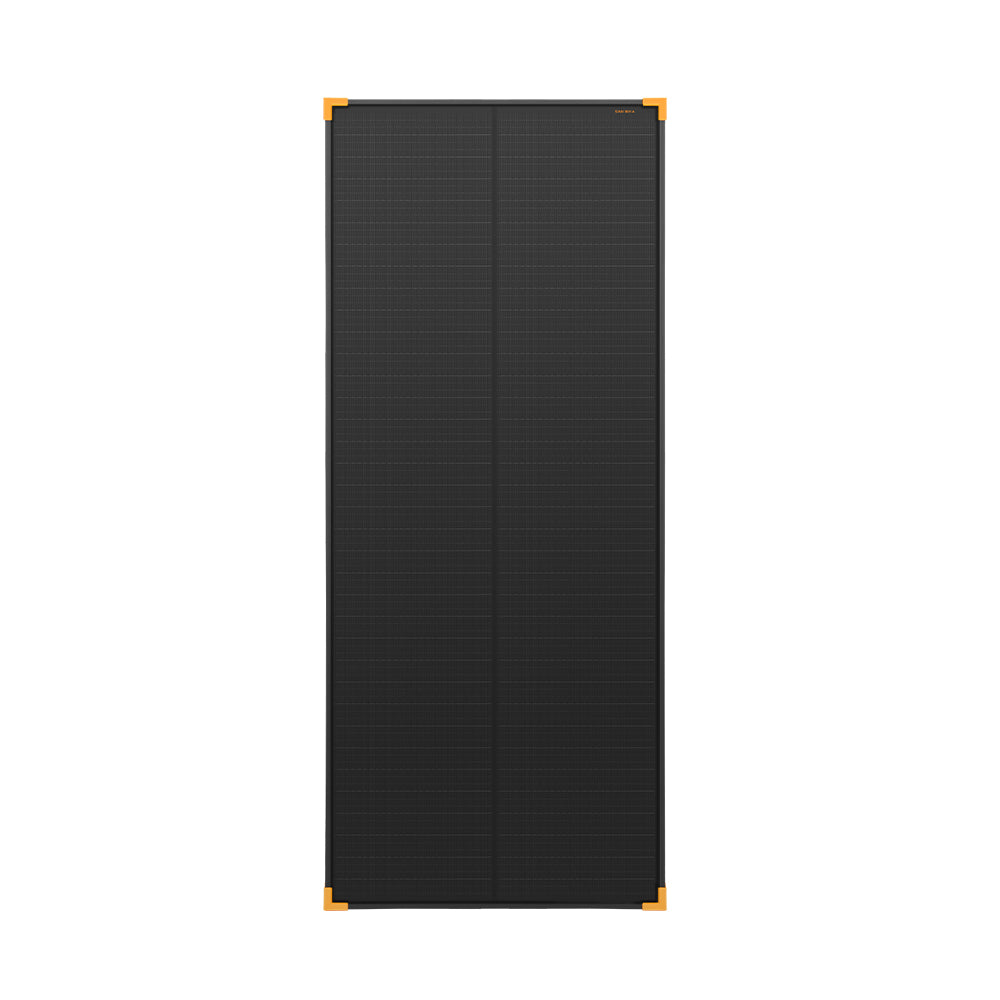

120W Shingled Solar Panel

Name: 120W Shingled Solar Panel
Brand: Ebay
SKU: SH-FISED-SG120W-PARENT
Price: 219.5 AUD
Availability: InStock

$219.50

$219.50 ~~$259.50~~

Save $40.00

Sold out

Tax included.

In stock, ready to ship
Inventory on the way

Product variants

Quantity

FREE SHIPPING AUSTRALIA WIDE

30-DAYS Money back guarantee

AUSTRALIA OWNED AND OPERATED

LEAVES WAREHOUSE IN 1-2 BUSINESS DAYS

These solar panels revolutionize solar technology by incorporating shingled solar cell technology, significantly boosting performance and durability.

Perfect for your 4WD, trailer, caravan, or boat, these panels provide the most efficient solar solution available. Unlike traditional panels that use busbars, ribbons, and soldering, the 120W shingled solar panels utilize cells sliced into 5 or 6 strips and bonded with electrically conductive adhesive (ECA).

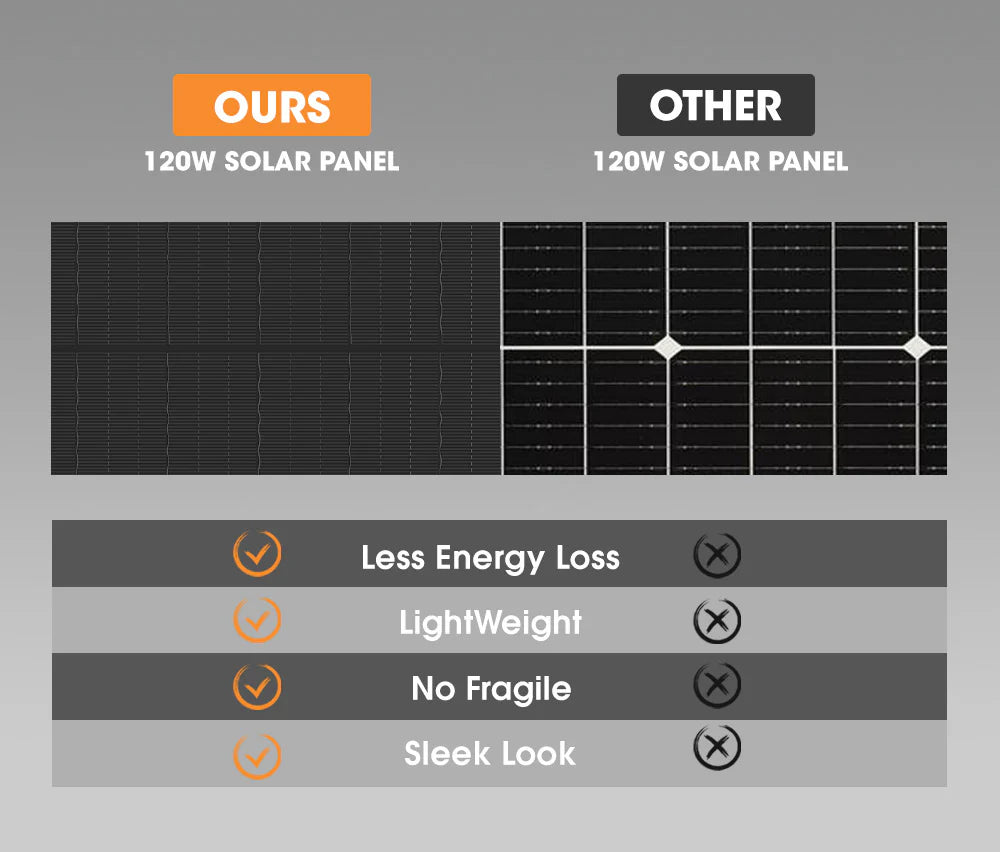

This innovative design captures up to 15-20% more solar energy than conventional panels. The shingled layout reduces shading losses and supports parallel wiring, enhancing overall efficiency. These panels also offer superior shock and impact resistance compared to monocrystalline solar panels, featuring a sleek design with no visible circuitry and an IP-68 rating for waterproof protection in harsh environments.

Features:

Shingled Cell Technology: Eliminates the need for busbars, ribbons, and soldered joints found in conventional panels, reducing potential failures.

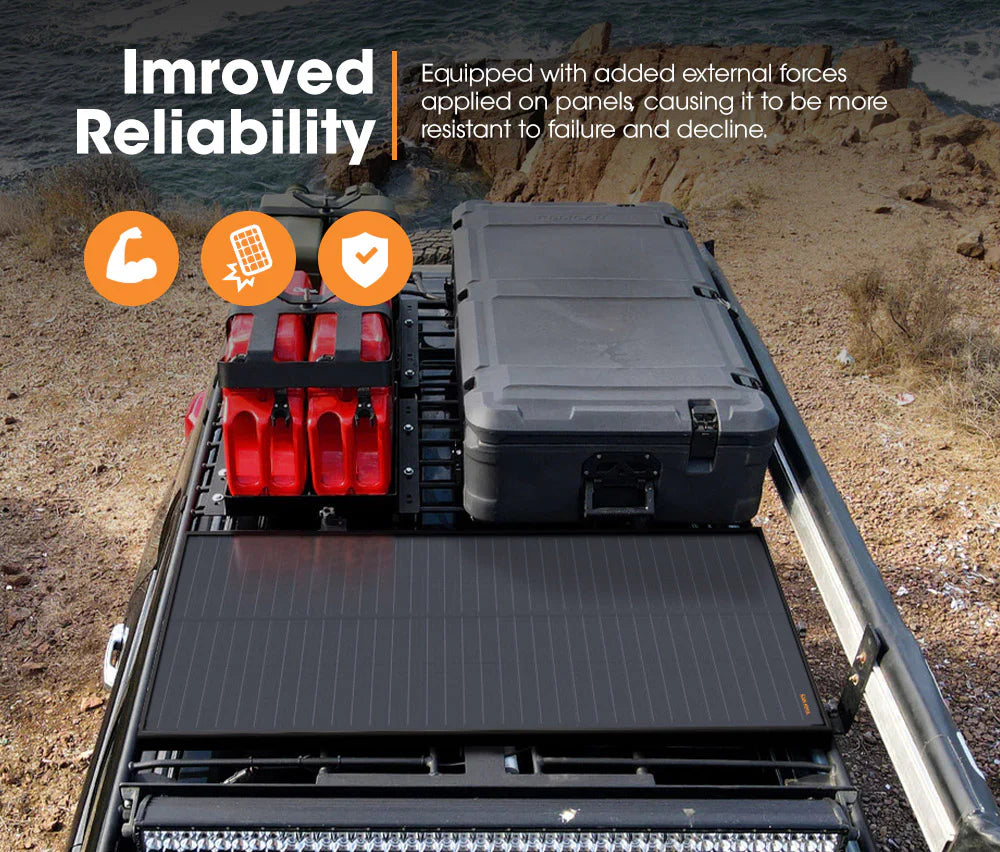

Enhanced Durability: Withstands external forces better than traditional panels, providing increased resilience.

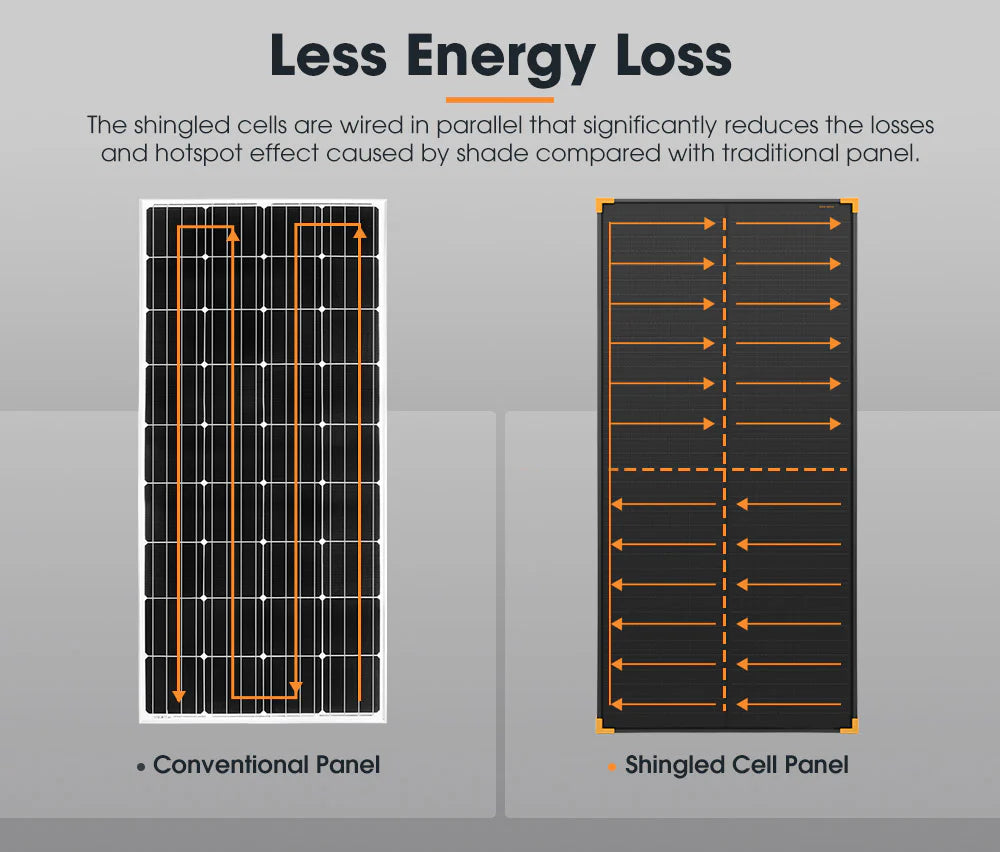

Reduced Energy Loss: Parallel wiring in shingled panels enhances efficiency and performance, with improved resistance to hotspots caused by shading.

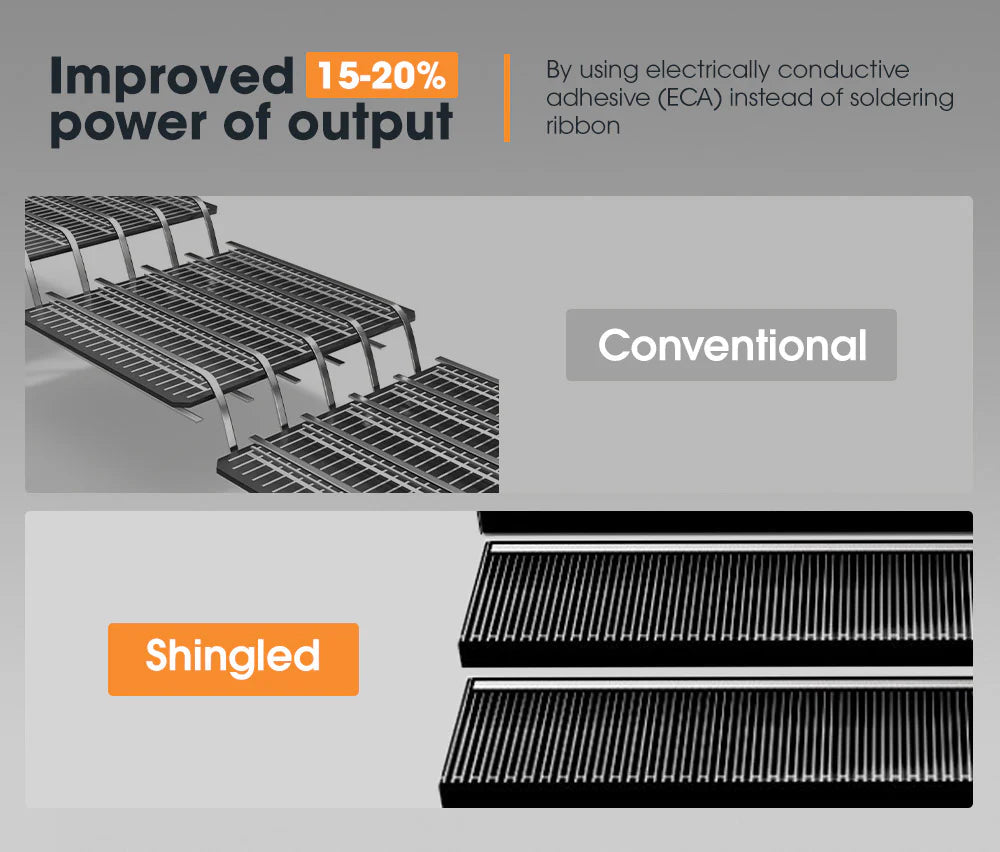

Increased Power Output: ECA bonding of solar cell strips increases power output by 15-20% compared to traditional panels.
Exceptional Sturdiness: Built with a robust aluminum frame and thick tempered glass to endure harsh weather conditions.
All-Weather Resistance: Boasts an IP68 rating for dust and water resistance, making it ideal for outdoor adventures.
Broad Compatibility: Compatible with mainstream deep-cycle batteries such as AGM, GEL, Flooded, lithium-ion, and LiFePO4 batteries.

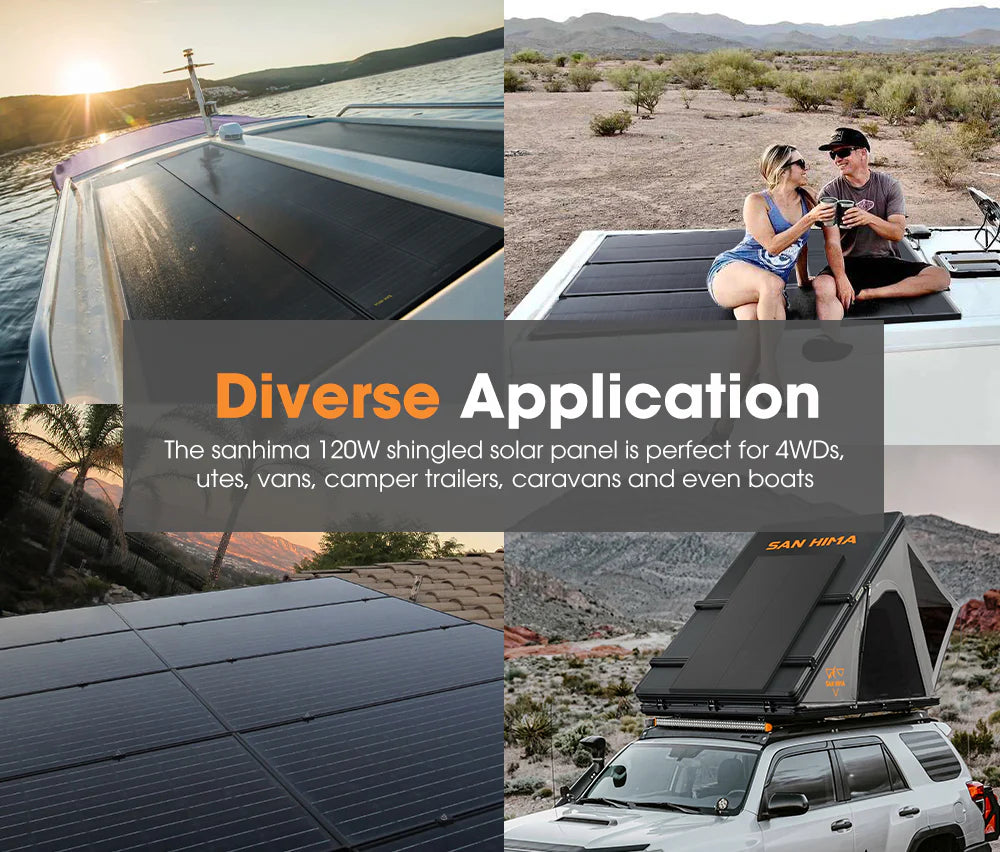

Versatile Applications: Ideal for efficient power in 4WDs, trailers, caravans, and boats.
Sleek Design: Features a clean, circuitry-free look, enhancing aesthetic appeal while delivering top performance.

Specifications:

Material: Shingled Cells
Color: Black
Max. Power (PW): 120W
Open-Circuit Voltage (VOC): 24.8V
Short-Circuit Current (ISC): 6.48A
Maximum Power Voltage (VMP): 19.8V
Maximum Power Current (IMP): 6.07A
Maximum System Voltage: 1000V
Max. Series Fuse Rating: 15A
Operating Temperature Range: -40°C ~ 85°C
Waterproof Rating: IP 68
Power Tolerance: ± 5%
Product Size: 116(L) x 54(W) x 3(H) cm
Gross Weight: 7.45 kg (Single)

Package Contents:

120W Shingled Solar Panel
1 x User Manual

CORE FEATURES

These solar panels revolutionize solar technology by incorporating shingled solar cell technology, significantly boosting performance and durability.

Perfect for your 4WD, trailer, caravan, or boat, these panels provide the most efficient solar solution available. Unlike traditional panels that use busbars, ribbons, and soldering, the 120W shingled solar panels utilize cells sliced into 5 or 6 strips and bonded with electrically conductive adhesive (ECA).

This innovative design captures up to 15-20% more solar energy than conventional panels. The shingled layout reduces shading losses and supports parallel wiring, enhancing overall efficiency. These panels also offer superior shock and impact resistance compared to monocrystalline solar panels, featuring a sleek design with no visible circuitry and an IP-68 rating for waterproof protection in harsh environments.

Features:

Shingled Cell Technology: Eliminates the need for busbars, ribbons, and soldered joints found in conventional panels, reducing potential failures.
Enhanced Durability: Withstands external forces better than traditional panels, providing increased resilience.
Reduced Energy Loss: Parallel wiring in shingled panels enhances efficiency and performance, with improved resistance to hotspots caused by shading.
Increased Power Output: ECA bonding of solar cell strips increases power output by 15-20% compared to traditional panels.
Exceptional Sturdiness: Built with a robust aluminum frame and thick tempered glass to endure harsh weather conditions.
All-Weather Resistance: Boasts an IP68 rating for dust and water resistance, making it ideal for outdoor adventures.
Broad Compatibility: Compatible with mainstream deep-cycle batteries such as AGM, GEL, Flooded, lithium-ion, and LiFePO4 batteries.
Versatile Applications: Ideal for efficient power in 4WDs, trailers, caravans, and boats.
Sleek Design: Features a clean, circuitry-free look, enhancing aesthetic appeal while delivering top performance.

Specifications:

Material: Shingled Cells
Color: Black
Max. Power (PW): 120W
Open-Circuit Voltage (VOC): 24.8V
Short-Circuit Current (ISC): 6.48A
Maximum Power Voltage (VMP): 19.8V
Maximum Power Current (IMP): 6.07A
Maximum System Voltage: 1000V
Max. Series Fuse Rating: 15A
Operating Temperature Range: -40°C ~ 85°C
Waterproof Rating: IP 68
Power Tolerance: ± 5%
Product Size: 116(L) x 54(W) x 3(H) cm
Gross Weight: 7.45 kg (Single)

Package Contents:

120W Shingled Solar Panel
1 x User Manual
