AGM Battery (75-170 Ah)

The AGM Deep Cycle Battery is a maintenance-free, sealed lead-acid battery. This model boasts an incredible cycle life of 1400 cycles making it one of the most enduring offerings in its class.  It’s fitted with bolt down terminals for more reliable and practical use and has a high oxygen-recombination efficiency that results in superior deep discharge recovery.

The battery is built with advanced absorbent glass mats (AGM) between its plates that act to retain the electrolyte that would otherwise be free-flowing, resulting in a much more stable and reliable end-product.  AGM batteries are completely sealed, meaning they don't leak or let off any gas and come with a range of other benefits.

You can run your appliances and portable fridge completely off-the-grid.  Connect a solar panel to recharge the battery during the day.  Enjoy total peace of mind knowing that there's a power source by your side in remote locations.

Battery boxes are also available HERE.

 FEATURES:

• Greater cycle life: up to 1400 cycles
• Withstand knocks and vibrations
• Higher sulfation resistance
• Longer storage life
• Better low-temperature performance
• Charges up to 5x faster than flooded batteries
• Reduces potential to be spilt in accidents
• Longer, consistent and more drawn out charge
• Maintenance-free
• Bolt down terminals
• High oxygen-recombination efficiency
• Superior deep discharge recovery
• Advanced absorbed glass mat acid retention technology

Specifications:

• Container material: ABS
• Terminals: bolt-down
• Nominal voltage: 12V
• Maximum cycle lIfe: 1400 cycles (@30% DOD)
• Operating temperature ranges:
• Discharge: -15°C to 50°C
• Charge: -20°C to 50°C
• Storage: -20°C to 50°C
• Capacity affected by temperature: 40°C = 102% | 25°C = 100% | 0°C = 85% | -15°C = 65%
• Float charge: 13.5 to 13.8V
• Equalise charge: 13.8 to 14.1V
• Cycle charge: 14.4 to 15.0V
• Self-discharge 3% of capacity declined per month at 25°C

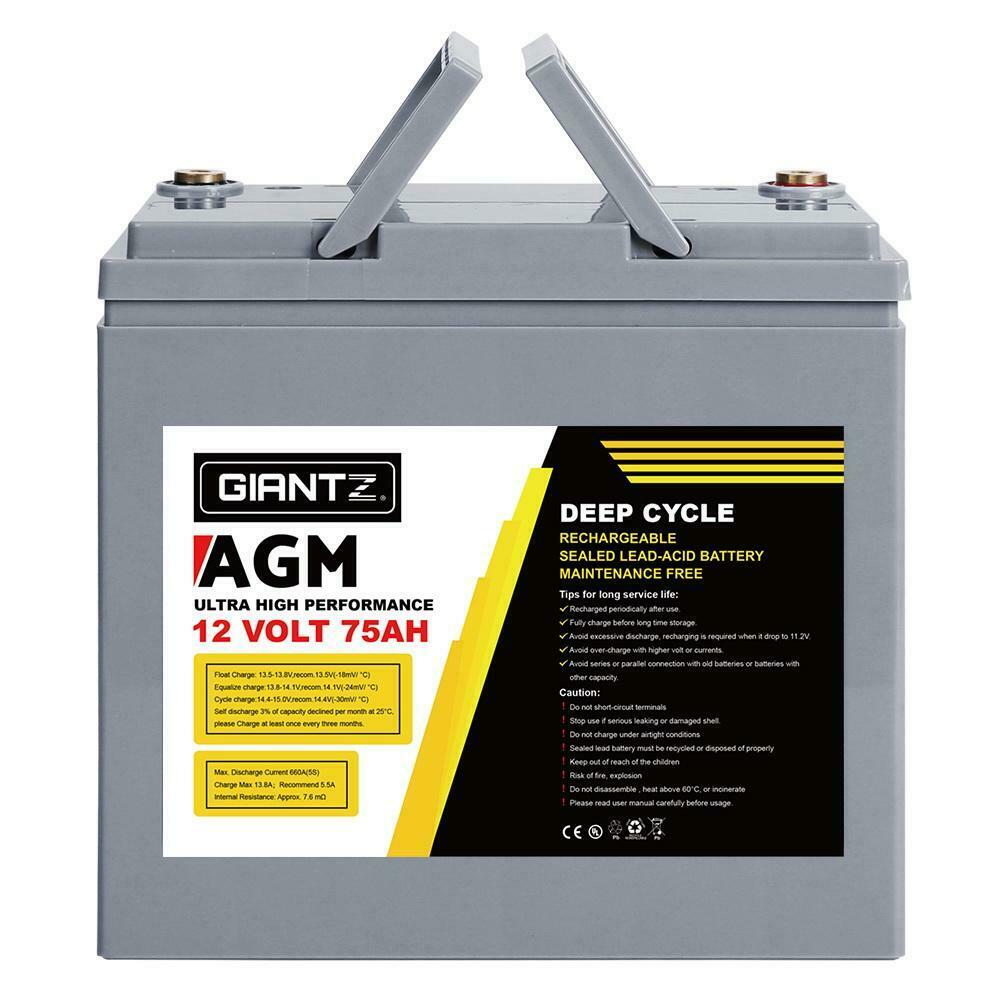

75Ah:

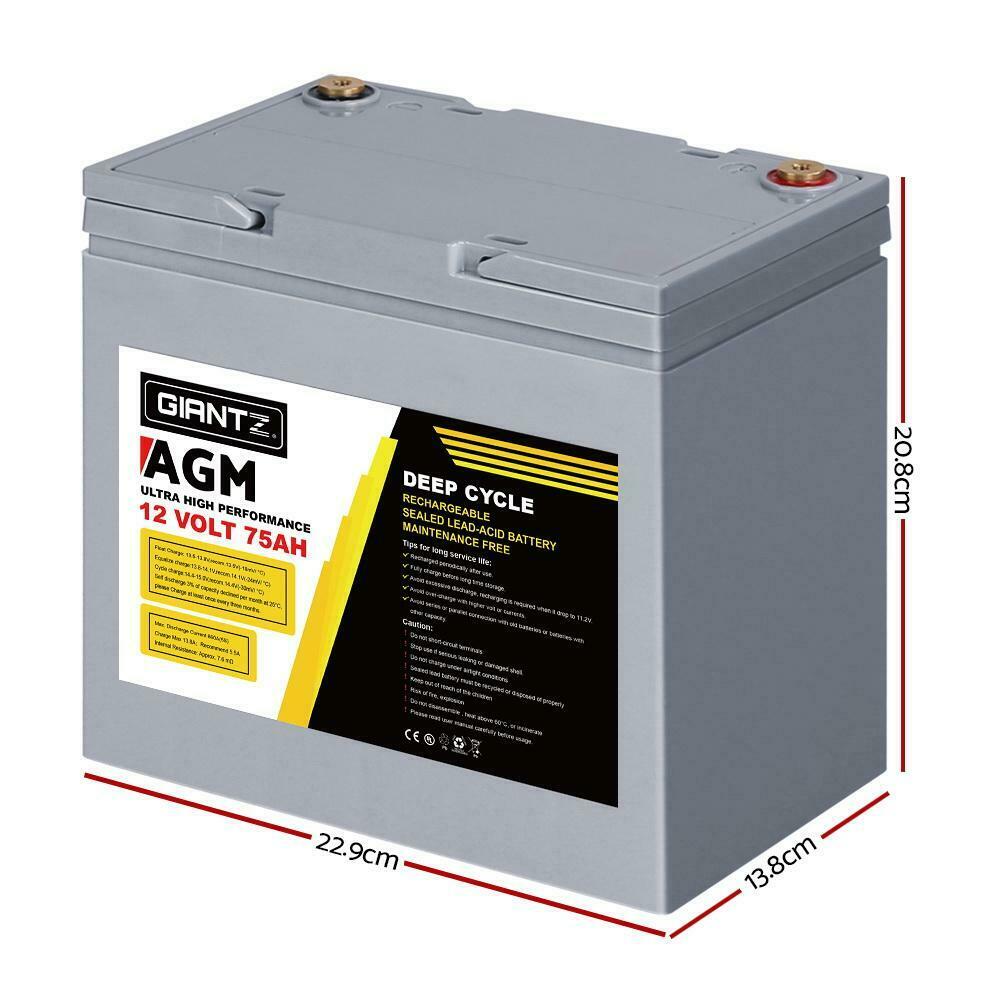

• Overall dimensions: 22.9cm x 13.8cm x 20.8cm
• Approx. weight: 15.5kg
• Rated capacity (10-hour rate): 75Ah
• Internal resistance: Approx. 7.6mΩ
• Maximum discharge current: 660A (5s)
• Maximum charge current: 13.8A

100Ah:

• Overall dimensions: 33cm x 17.1cm x 21.6cm
• Approx. weight: 25kg
• Rated capacity (10-hour rate): 100Ah
• Internal resistance: Approx. 5.4mΩ
• Maximum discharge current: 1080A (5s)
• Maximum charge current: 22.5A

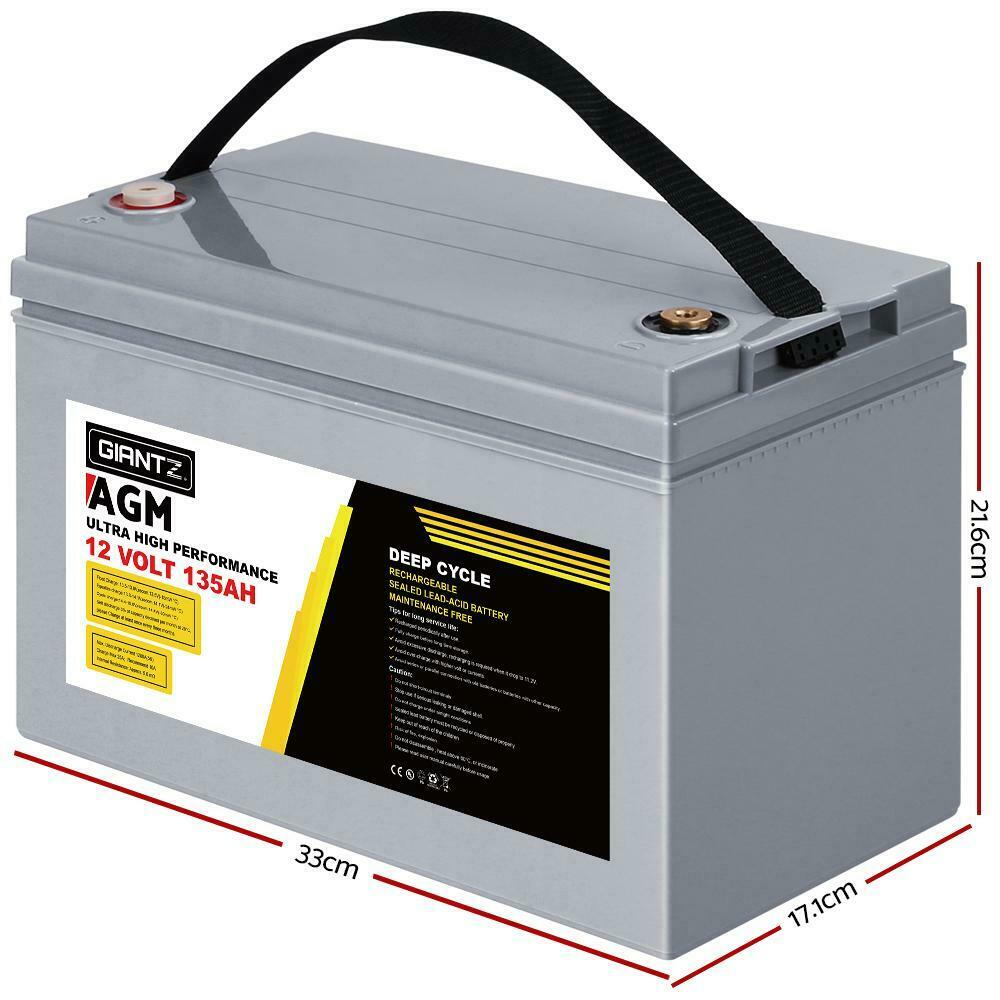

135Ah:

• Overall dimensions: 33cm x 17.1cm x 21.6cm
• Approx. weight: 29.5kg
• Rated capacity (10-hour rate): 135Ah
• Internal resistance: Approx. 5.0mΩ
• Maximum discharge current: 1200A (5s)
• Maximum charge current: 25A

170Ah:

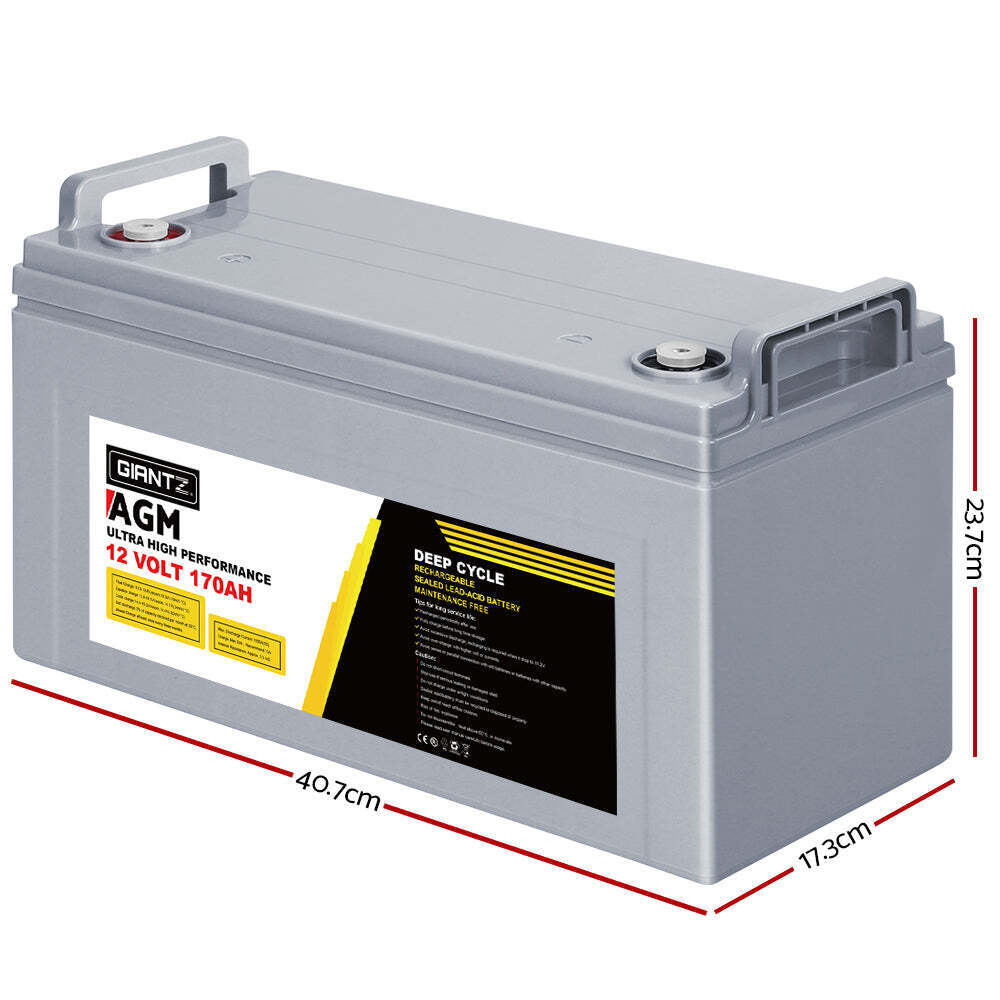

• Overall dimensions: 40.7cm x 17.3cm x 23.7cm
• Approx. weight: 35kg
• Rated capacity (10-hour rate): 170Ah
• Internal resistance: Approx. 3.5mΩ
• Maximum discharge current: 1550A (5s)
• Maximum charge current: 33A

Package Contents:

• 1x AGM Deep Cycle Battery (75/100/135Ah)
• 1x User Manual

Please Note:

• Maintenance-free refers to users not having to refill the terminals.  The batteries must still be recharged periodically after use.
• AGM Deep Cycle Batteries have a much longer Cycle Life if they’re exhausted to a small degree and recharged, rather than exhausting all of their power and charging them all the way up again.
• Discharging below 11.8V can destroy the battery beyond repair.  Ensure that the battery is recharged before it gets to this voltage.
