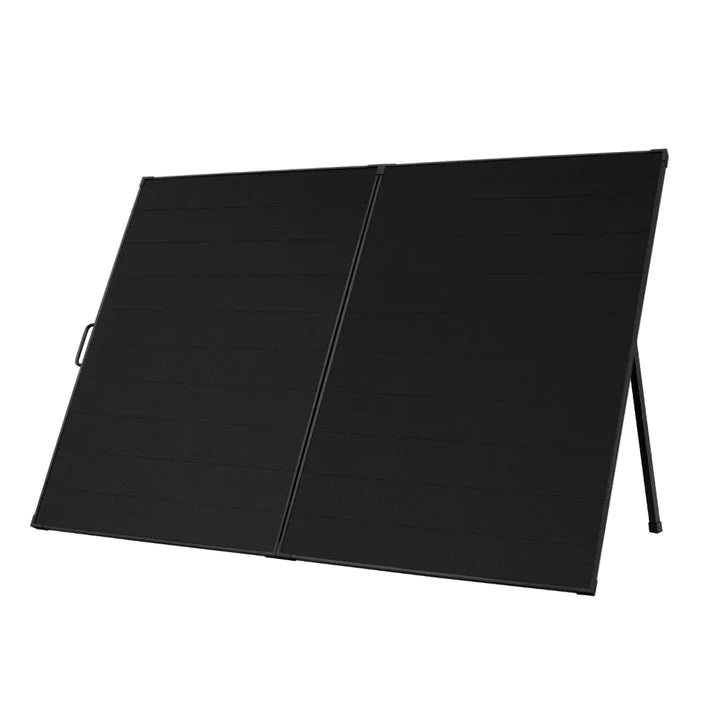

300W Shingled Folding Solar Panel

  • Sale
  • $309.95
  • Regular price $349.90

Our Shingled Solar Panel Kit is an innovative off-grid power solution. Complete with a connection cable, robust fold-out legs, durable steel fasteners, a solar regulator, and handy alligator clips, this kit is designed for convenience. Just connect your 12V battery, and you're all set to power your devices during camping trips or when venturing off the grid.

These strips are then interconnected using an electrically conductive adhesive (ECA), enabling both conductivity and flexibility. Unlike conventional panels with busbars (ribbons) that introduce gaps between solar cells, shingle solar cells eliminate such gaps, contributing to increased efficiency.

Using highly efficient shingled cells, this panel is capable of keeping batteries topped up, while powering fridges, lights, and other gadgets at camp.


Features:

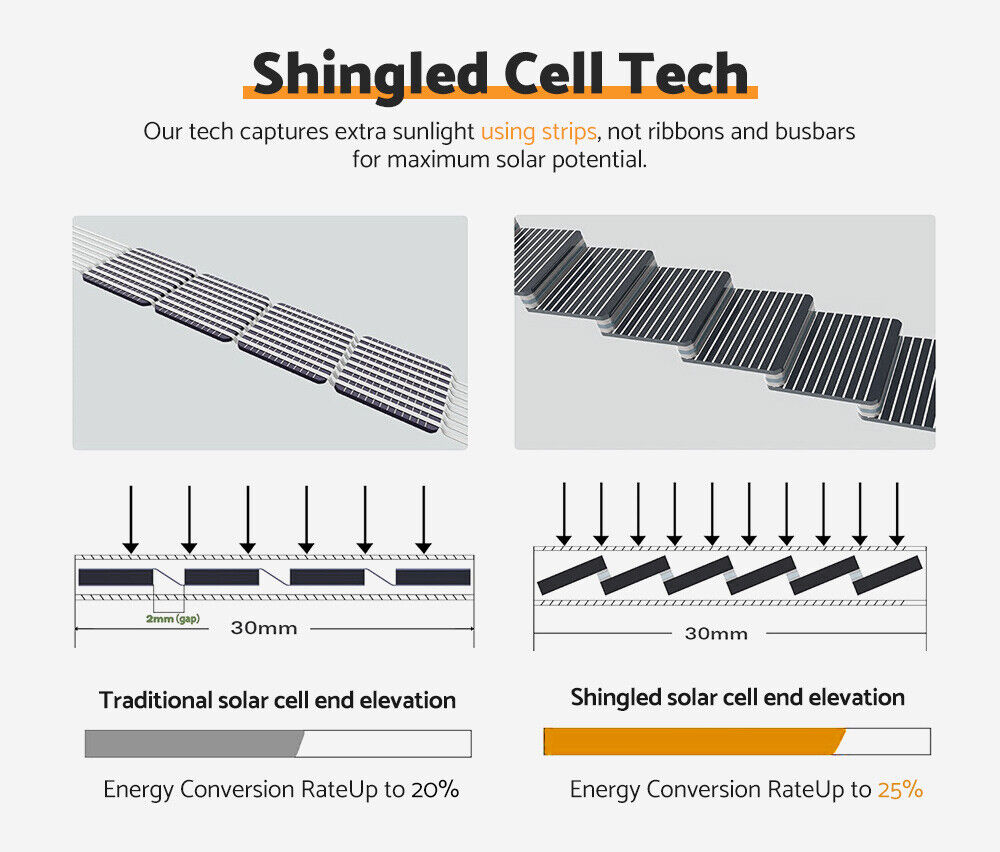

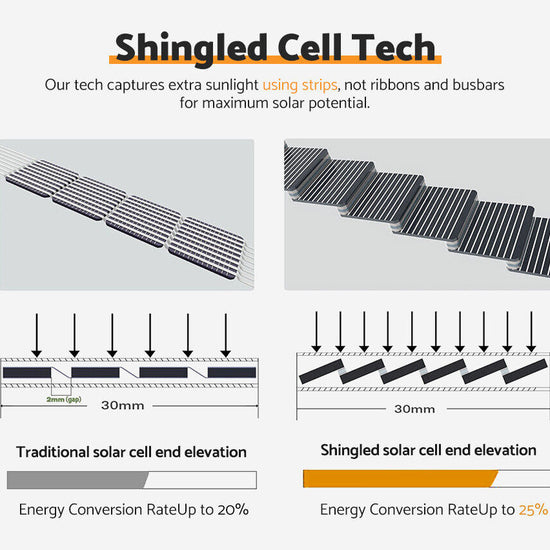

  • Shingled Advancements: Additional sunlight absorption through shingled cell technology, utilizing strips instead of ribbons and busbars for maximum energy yield.

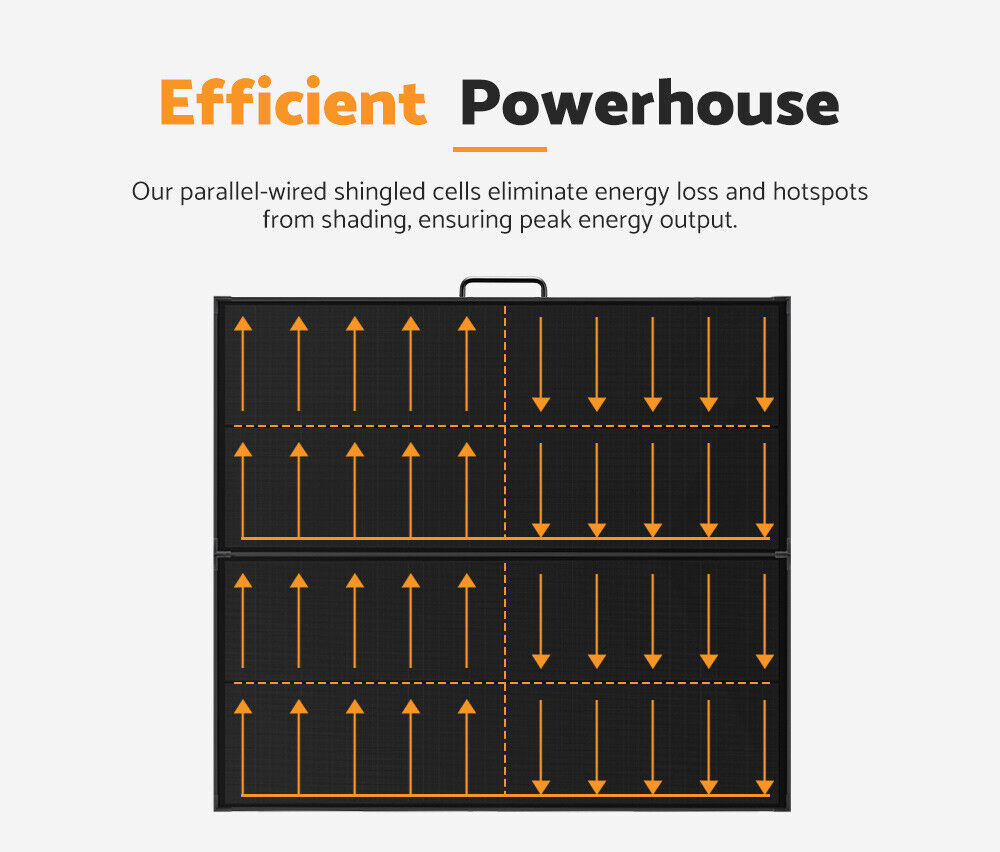

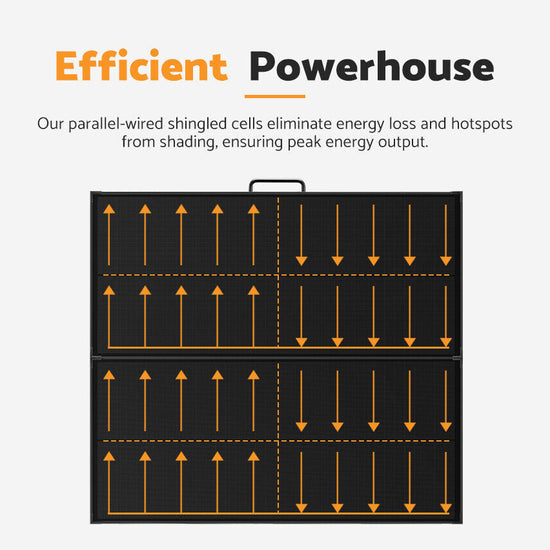

  • Enhanced Efficiency: Wired in parallel, shingled cells eliminate energy loss and shade-induced hotspots, ensuring optimal energy output with every ray of sunshine.

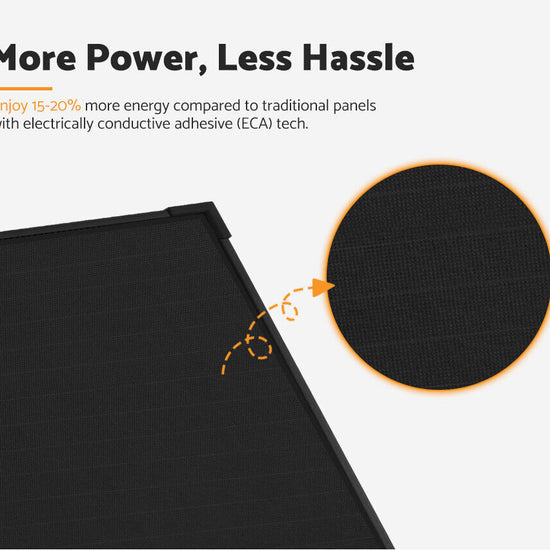

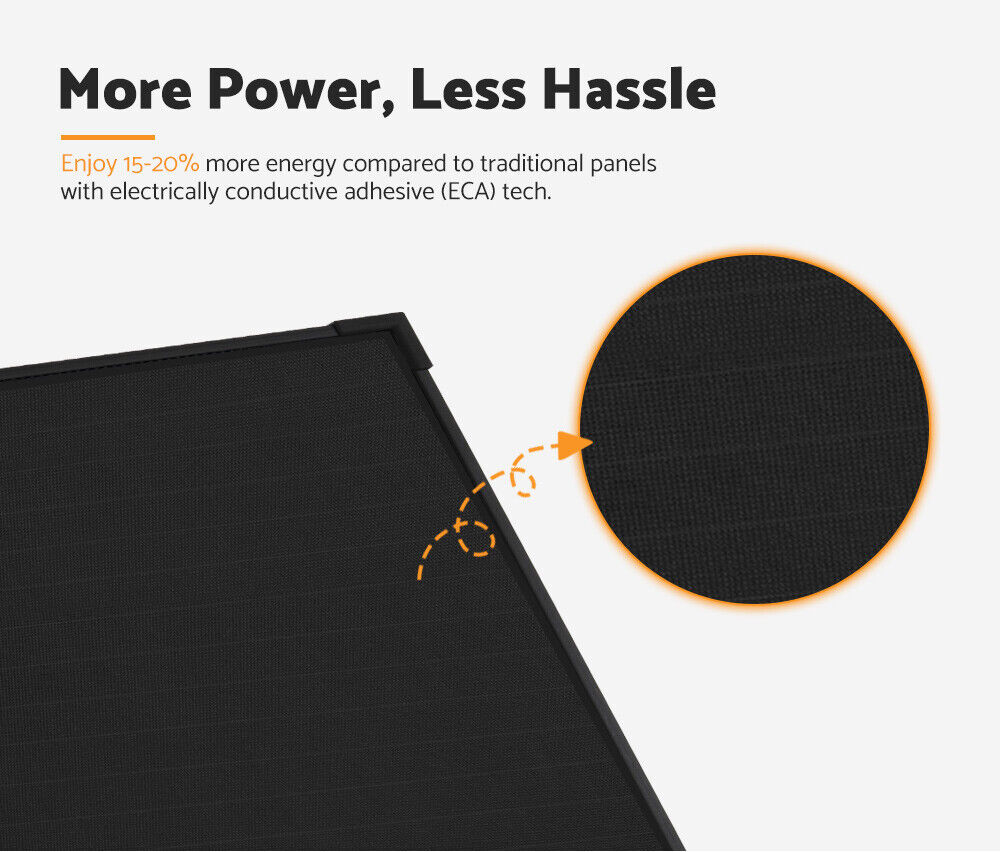

  • Increased Output: 15-20% boost in energy output compared to traditional panels, thanks to our electrically conductive adhesive (ECA) technology seamlessly joining our panels.

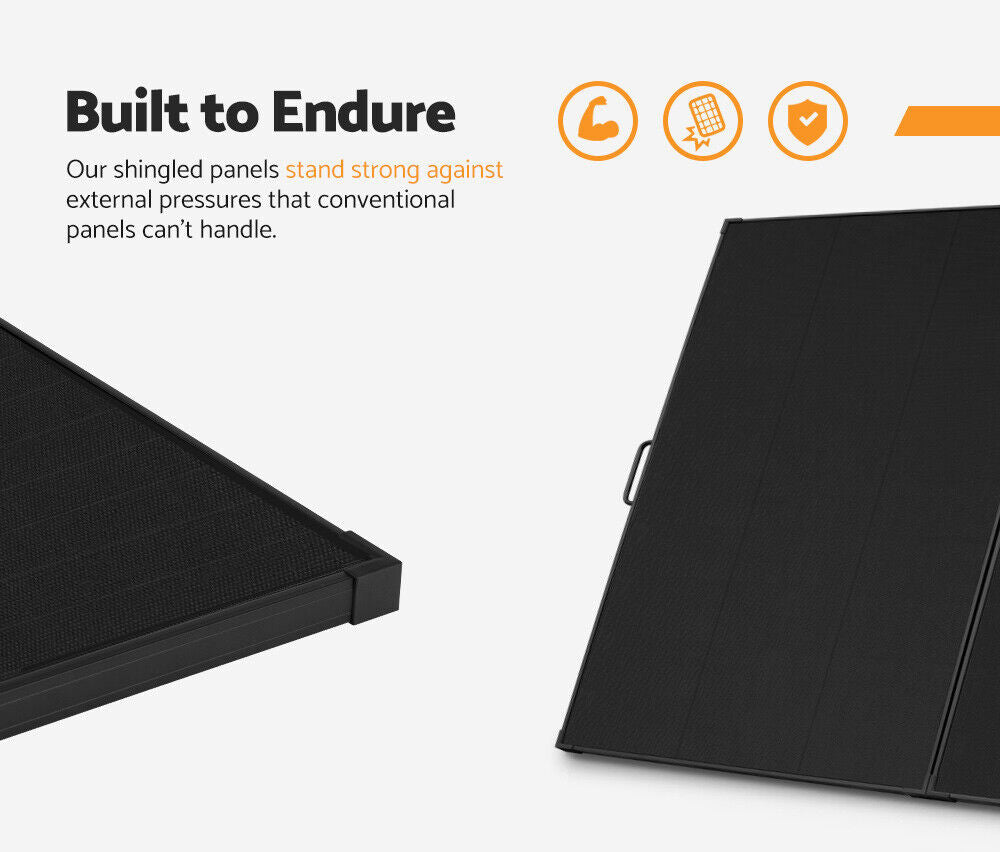

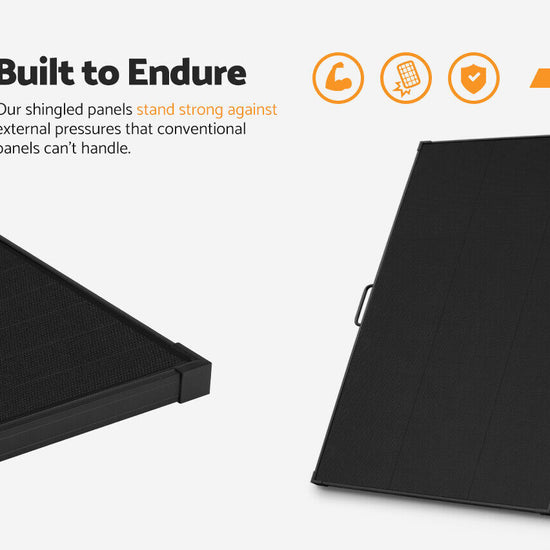

  • Built for Durability: Redefining reliability and toughness, shingled solar panels withstand external pressures that often cause conventional panels to fail.

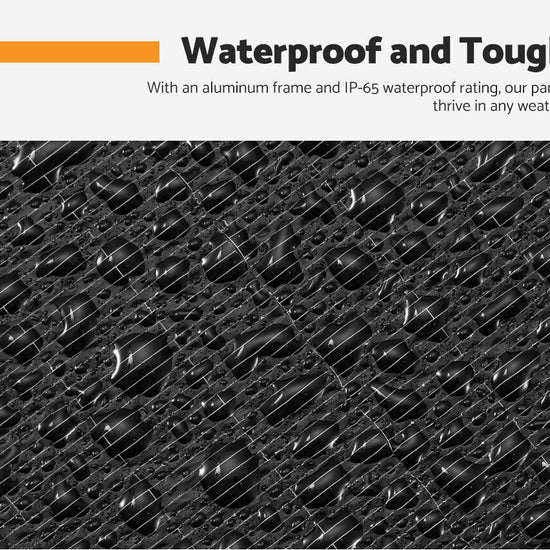

  • Weatherproof & Resilient: Featuring an aluminum frame and an IP-65 waterproof rating, our panels consistently perform regardless of harsh weather conditions.

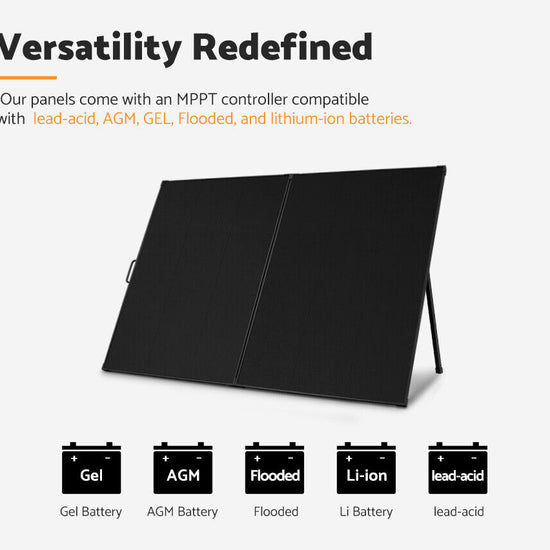

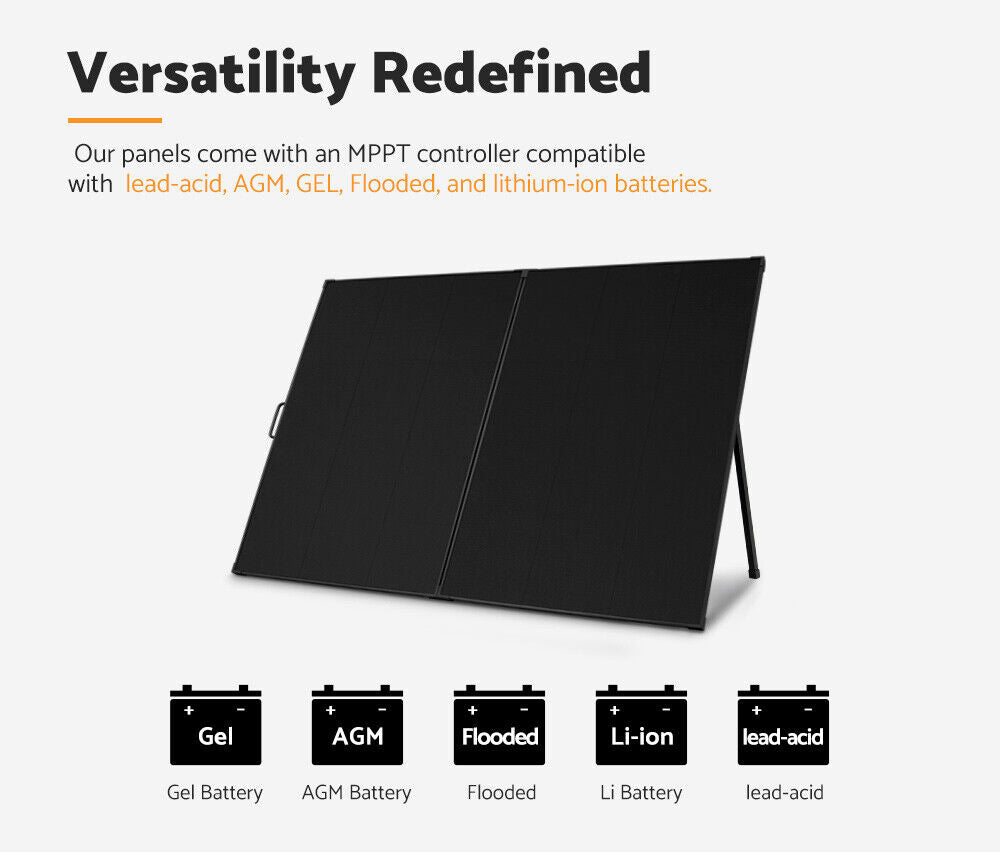

  • Highly Versatile: Equipped with an MPPT controller compatible with lead-acid, AGM, GEL, Flooded, and lithium-ion batteries, our panels offer versatile power options.

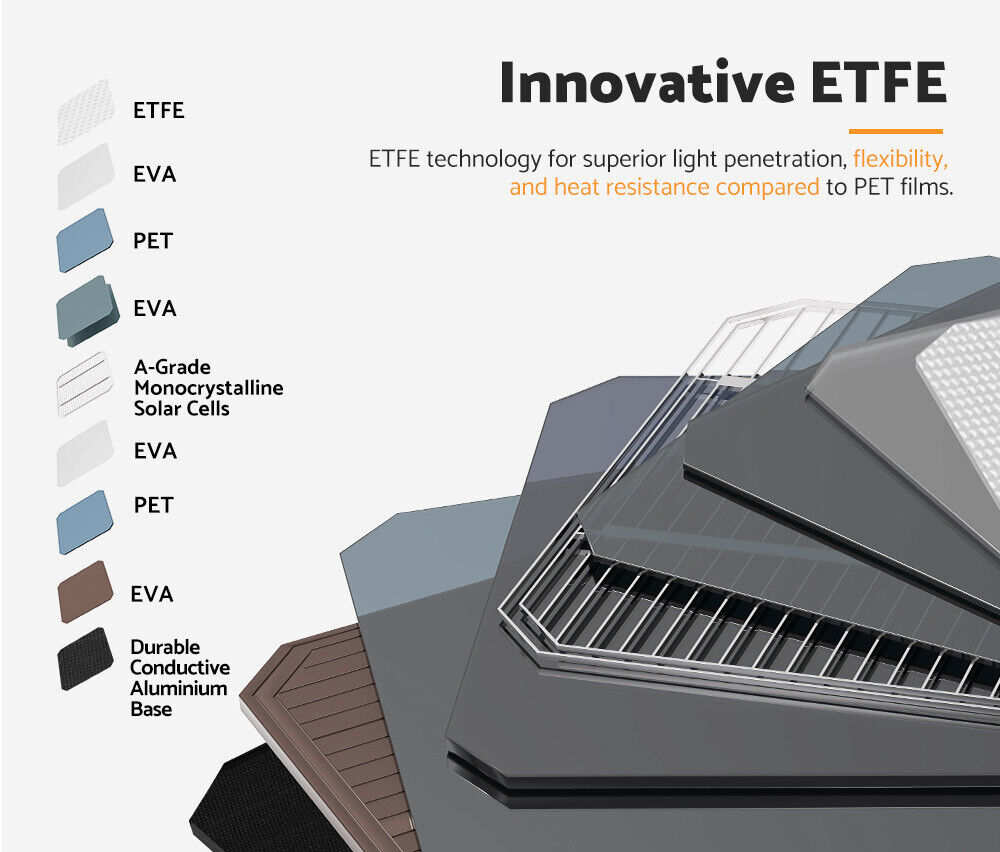

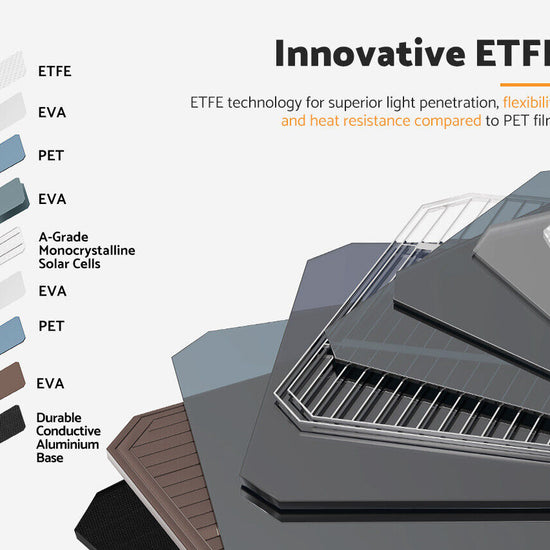

  • Innovative ETFE Technology: providing superior light penetration, exceptional flexibility, and enhanced heat resistance compared to standard PET films.

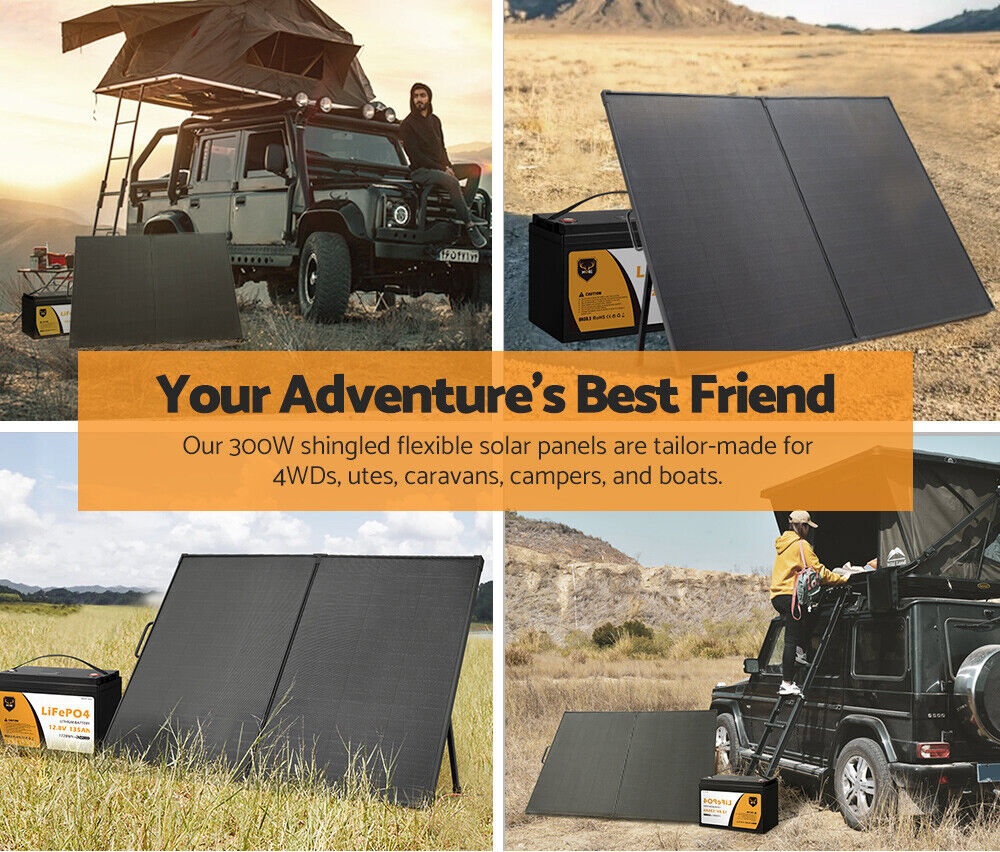

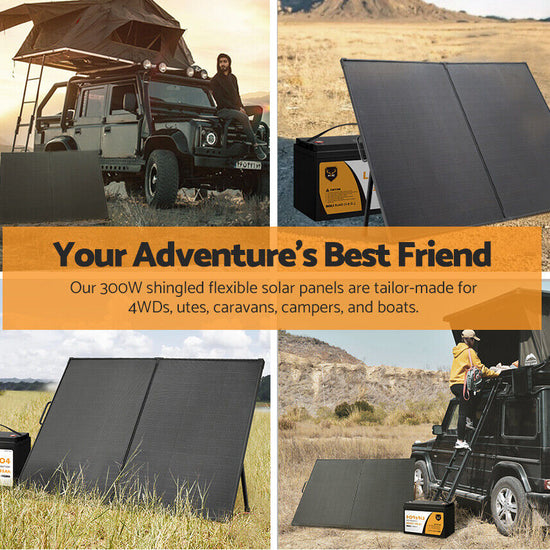

  • Universal Suitability: Tailored for 4WDs, utes, caravans, camper trailers, boats, camping, motorhome, etc.
  • Sleek Aesthetics: Blending performance and style, our shingled solar panels feature a clean, minimalist design, enhancing both functionality and visual appeal.
  • Optimally Designed: Kickstands optimize power absorption, a magnetic design simplifies unfolding and folding, and the included carry bag enhances portability for an optimal solar experience.

Specifications:

  • Cell Type: Shingled Module Grade A Monocrystalline Cell
  • Max. Power(PM): 300W
  • Open-Circuit Voltage(VOC): 22.50V
  • Short-Circuit Current(ISC): 17.90A
  • Max. Power Voltage(VMP): 18.4V
  • Max. Power Current(IMP): 16.3A
  • Max. System Voltage: 1000V
  • Operating Temperature Range: -20°C ~ 85°C
  • Waterproof Rating: IP-65
  • Certifications: CE, ROHS
  • Package Size: 112(L)x7(W)x72.5(H)cm
  • Gross Weight: 10.25kg

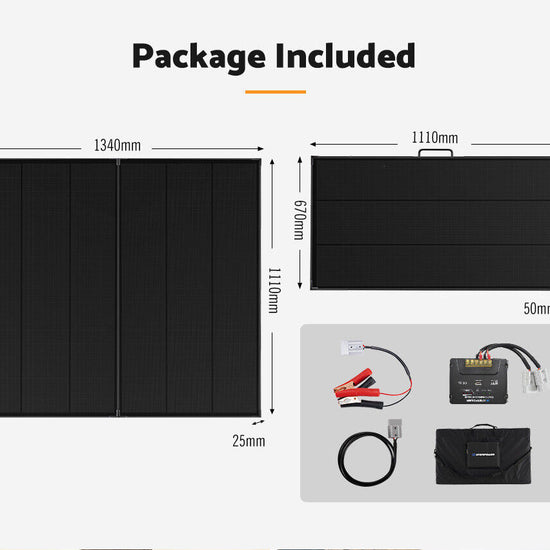

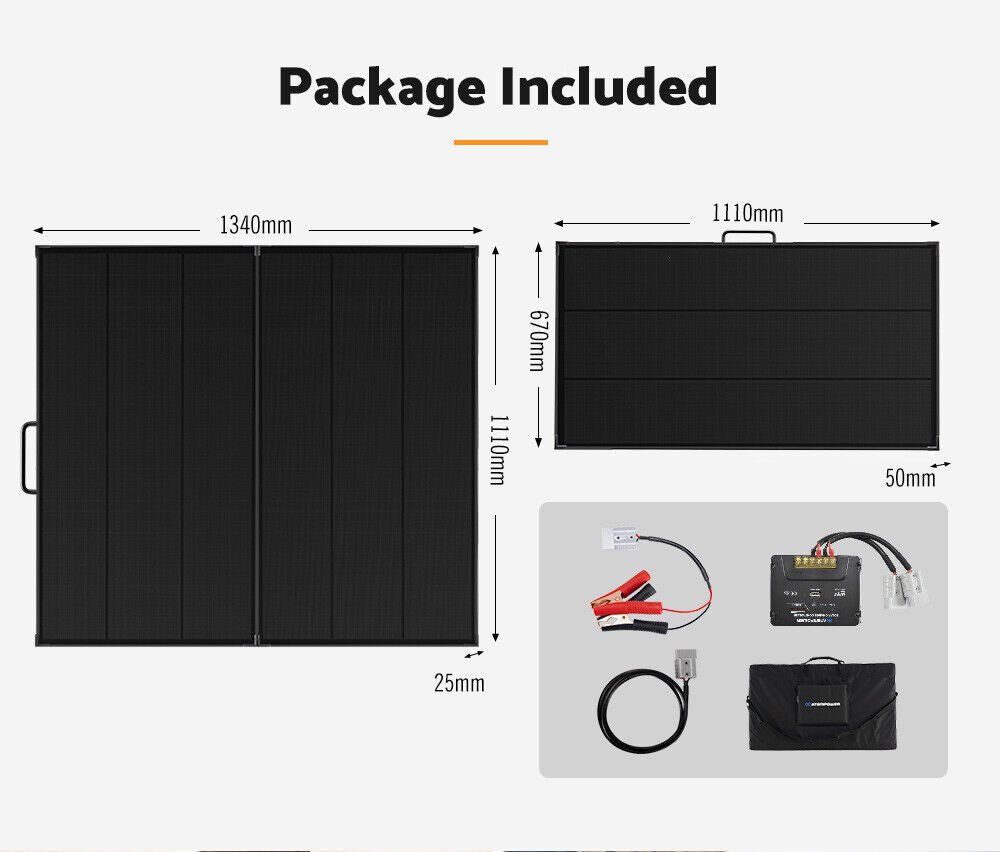

    Package Contents:
    • 2 x 150W solar panel (foldable pair)
    • 1 x Anderson Extension Cable with Alligator Clips
    • 1x Carry Bag
    • 1 x 20A MPPT Controller
